| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 1.00mm*0.30mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | SFT-UEWH 180 1.00mm*0.30mm Solderable Rectangular Enameled Copper Wire | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 1.0mm |
| Thickness: | 0.3mm | Conductor Material: | Copper |
| Key Word: | SFT-UEWH 180 1.00mm*0.30mm Solderable Rectangular Enameled Copper Wire | ||
| Highlight: | solderable enamel coated magnet wire,1mm enamel coated magnet wire,rectangular copper wire solderable |
||

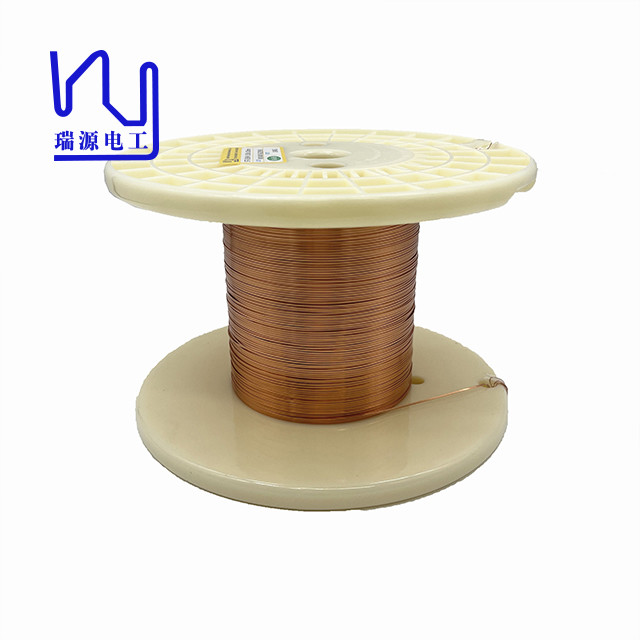

SFT-UEWH 180 1.00mm*0.30mm Solderable Rectangular Enameled Copper Wire
Enamelled copper flat wire is a kind of multi-functional electrical wire, which can be used in various industrial fields. This kind of wire is made of advanced technology, and the surface is covered with a thick varnish layer, so that it has good corrosion resistance, durability and elasticity.
It will not reduce its life span due to changes in external conditions. In addition, the wire has excellent bending characteristics and is obviously more suitable for construction in narrow, inaccessible places. This wire SFT-UEWH 1.00*0.30 is used in smaller inductors. Customers choose it because the space of inductor is very small and it is difficult to arrange wires.
|
Product name |
SFT-UEWH 180 1.00mm*0.30mm Solderable Rectangular Enameled Copper Wire |
|
Coating material |
AIW |
|
Thermal class |
220 |
|
Key word |
SFT-UEWH 180 1.00mm*0.30mm Solderable Rectangular Enameled Copper Wire |
|
Conductor Dimension
mm |
Thickness of Insulation
mm |
Overall dimension
mm |
Breakdown Voltage kv |
Conductor Resistance Ω/km 20°C |
Pinhole
Pcs/m |
Elongation
% |
|||
| Thickness | Width | Thickness | Width | Thickness | Width | ||||
| 0.291-0.309 | 0.940-1.060 | 0.01-0.04 | 0.01-0.04 | 0.34-0.35 | 1.030-1.050 | Min0.70 | Max 65.73 | Max 2 | Min 30 |
