| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 1.1x1.8mm |
| Minimum Order Quantity: | 3kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | AIW 220 1.8mm Super Thin Rectangular Enameled Copper Winding Wire | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 1.8mm |
| Thickness: | 1.1mm | Conductor Material: | Copper |
| Key Word: | AIW 220 1.8mm Super Thin Rectangular Enameled Copper Winding Wire | ||
| Highlight: | 1.8mm winding wire copper,super thin winding wire copper,rectangular enameled wire |
||

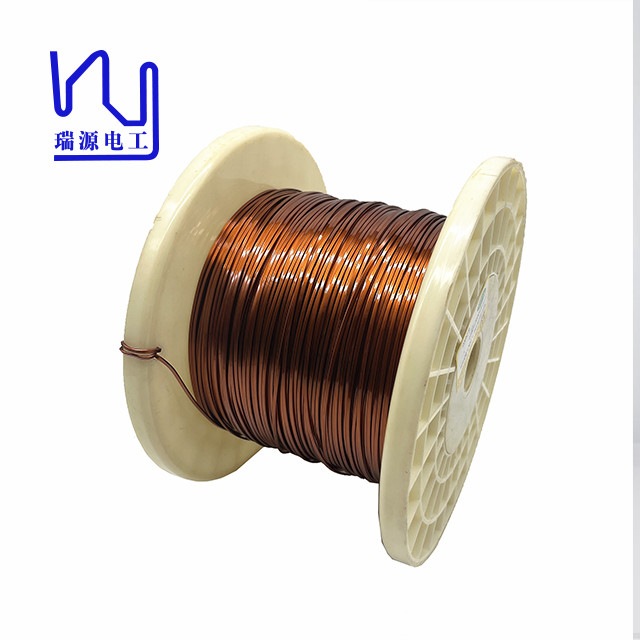

AIW 220 1.8mm Super Thin Rectangular Enameled Copper Winding Wire
Application:
Network communication equipment, consumer electronics, new energy vehicles, photovoltaic inverters,etc.
|
Product name |
AIW 220 1.8mm Super Thin Rectangular Enameled Copper Winding Wire |
|
Coating material |
AIW |
|
Thermal class |
220 |
|
Key word |
AIW 220 1.8mm Super Thin Rectangular Enameled Copper Winding Wire |
|
Item |
Characteristics |
Standard |
Test Result |
||
|
1 |
Appearance |
Smooth Equality |
Smooth Equality |
||
|
2 |
Conductor Diameter |
Width |
1.80 |
±0.060 |
1.823 |
|
Thickness |
1.10 |
±0.009 |
1.087 |
||
|
3 |
Thickness of Coating layer |
Width |
------ |
------ |
|
|
Thickness |
Min. 0.020 |
0.051 |
|||
|
4 |
Overall Diameter |
Width |
Max. 1.90 |
1.877 |
|
|
Thickness |
Max. 1.15 |
1.138 |
|||
|
5 |
Pinhole |
Max. 3hole/m |
0 |
||
|
6 |
Elongation |
Min. 30 % |
37% |
||
|
7 |
Flexibility and Adherence |
No crack |
No crack |
||
|
8 |
Conductor Resistance (Ω/km at 20℃) |
Max. 10.56 |
9.69 |
||
|
9 |
Breakdown Voltage |
Min. 0.7KV |
1.30 |
||
|
10 |
Heat shock |
No Crack |
No Crack | ||
