| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 1.1x1.8mm |
| Minimum Order Quantity: | 3kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | AIW Class 220C Rectangular Copper Wire 1.1mm X 1.8mm HF Flat Enameled Wire | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 1.8mm |
| Thickness: | 1.1mm | Conductor Material: | Copper |
| Key Word: | AIW Class 220C Rectangular Copper Wire 1.1mm X 1.8mm HF Flat Enameled Wire | ||
| Highlight: | 1.1mm rectangular copper wire,aiw rectangular copper wire,rectangular super enamelled copper wire |
||

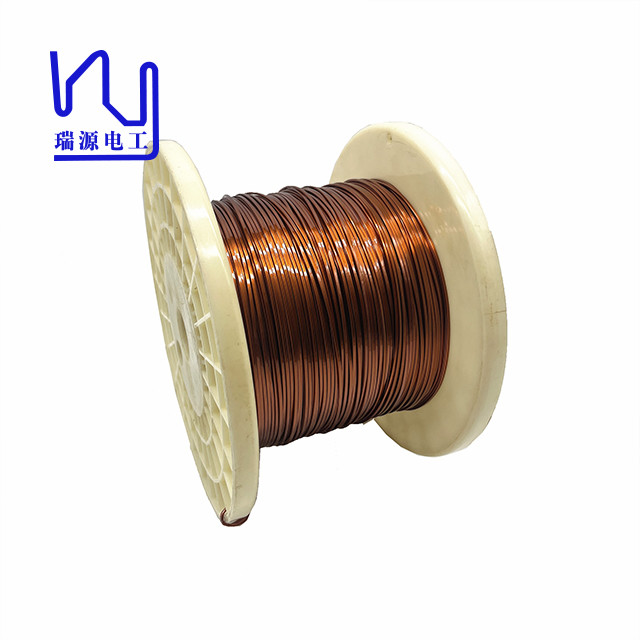

AIW Class 220C Rectangular Copper Wire 1.1mm x 1.8mm HF Flat Enameled Wire
We have around 10000 sizes of enameled rectangular copper wire.In addition, the insulation layer thickness can be customized, we can produce according to the specification provided by customers.Please contact us to specify the specific sizes you need.
|
Product name |
AIW Class 220C Rectangular Copper Wire 1.1mm x 1.8mm HF Flat Enameled Wire |
|
Coating material |
AIW |
|
Thermal class |
220 |
|
Key word |
AIW Class 220C Rectangular Copper Wire 1.1mm x 1.8mm HF Flat Enameled Wire |
|
Item |
Characteristics |
Standard |
Test Result |
||
|
1 |
Appearance |
Smooth Equality |
Smooth Equality |
||
|
2 |
Conductor Diameter |
Width |
1.80 |
±0.060 |
1.823 |
|
Thickness |
1.10 |
±0.009 |
1.087 |
||
|
3 |
Thickness of Coating layer |
Width |
------ |
------ |
|
|
Thickness |
Min. 0.020 |
0.051 |
|||
|
4 |
Overall Diameter |
Width |
Max. 1.90 |
1.877 |
|
|
Thickness |
Max. 1.15 |
1.138 |
|||
|
5 |
Pinhole |
Max. 3hole/m |
0 |
||
|
6 |
Elongation |
Min. 30 % |
37% |
||
|
7 |
Flexibility and Adherence |
No crack |
No crack |
||
|
8 |
Conductor Resistance (Ω/km at 20℃) |
Max. 10.56 |
9.69 |
||
|
9 |
Breakdown Voltage |
Min. 0.7KV |
1.30 |
||
|
10 |
Heat shock |
No Crack |
No Crack | ||
