| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | UEW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.5mm Class 155 Electric Motor Winding Wire Enameled Copper Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.5mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Polyurethane |
| Rated Temperature: | 155/180 | Key Word: | 0.5mm Class 155 Electric Motor Winding Wire Enameled Copper Wire |
| Highlight: | class 155 enamel insulated copper wire,motor winding enamel insulated copper wire,0.5mm winding wire of copper |
||

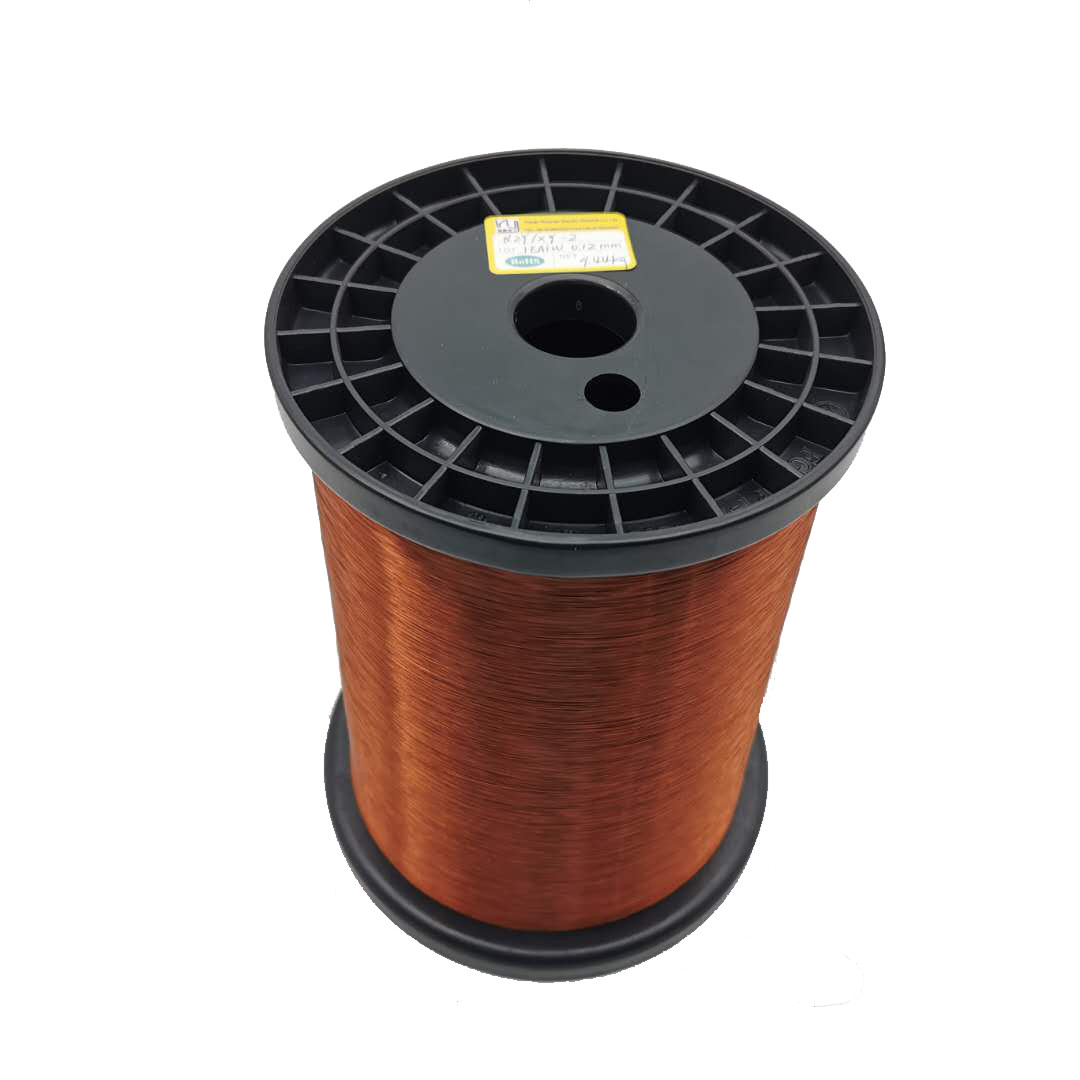

0.5mm class 155 Electric Motor Winding Wire Enameled Copper Wire
Polyesterimide/polyamide composite enameled wire, thermal class 180, the product has good thermal shock resistance, high softening breakdown temperature, excellent mechanical strength, good solvent resistance and refrigerant resistance, and its weakness is that it is easy to be damaged under closed conditions. Hydrolyzed, widely used in windings of motors, electrical appliances, instruments, power tools, dry-type power transformers, etc. with high heat resistance requirements.
|
Name |
0.5mm class 155 Motor Winding Magnet Wire Enameled Copper Wire |
|
Key word |
Enameled copper wire |
|
Insulation |
Polyurethane |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.5mm |
|
Key word |
0.5mm class 155 Motor Winding Magnet Wire Enameled Copper Wire |
