| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | CTC |
| Minimum Order Quantity: | 10 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Customized CTC Copper Wire Rectangular Enameled Copper Conductor | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | UEW | Size: | 0.2mm |
| Conductor Material: | Copper | Key Word: | Customized CTC Copper Wire Rectangular Enameled Copper Conductor |
| Highlight: | customized rectangular copper wire,ctc rectangular copper wire,0.2 mm rectangular magnet wire |
||

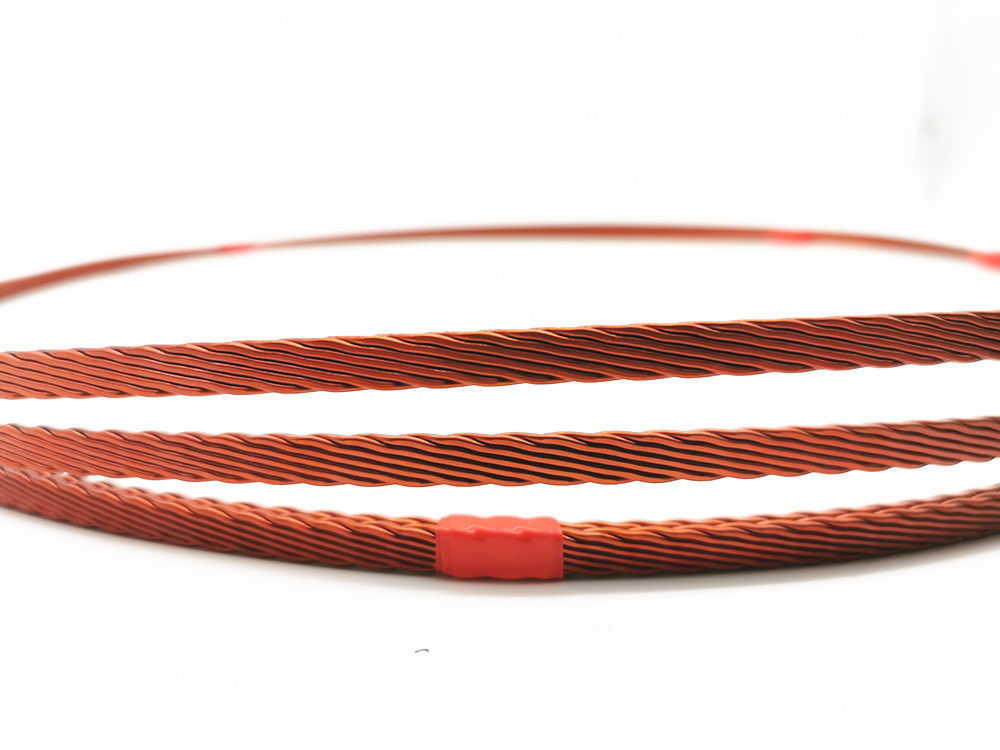

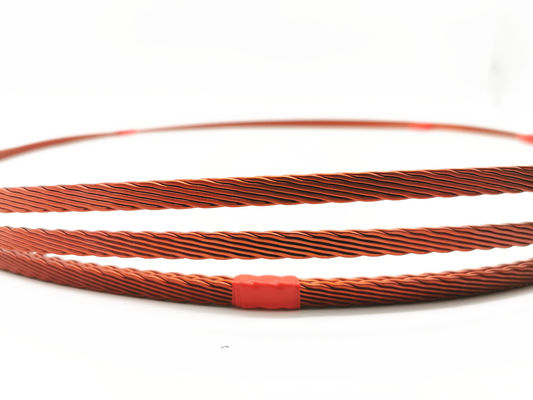

Customized CTC Copper Wire Rectangular Enameled Copper Conductor
Transposed conductor refers to the combination of a certain number of enameled copper flat wires into two rows with wide surfaces in contact with each other, and the same direction of transposition is performed on the top and bottom of the two rows of enameled wires along the narrow surface as required, and electrical insulating paper is used. The belt is composed of multiple layers of continuous and tight wrapping
The windings of large power transformers use transposed conductors, which can greatly reduce the load loss, reduce the temperature rise of winding hot spots, improve the mechanical strength of the windings, make the structure more compact, and make the coil processing easier. It is widely used in winding design and manufacture.
|
Product name |
Customized CTC Copper Wire Rectangular Enameled Copper Conductor |
|
Condcutor material |
Copper |
|
Insulation |
Enamel |
|
Application |
High power transformer/new energy vehicles |
|
Key word |
Customized CTC Copper Wire Rectangular Enameled Copper Conductor |
