| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.3mm* 0.18 |
| Minimum Order Quantity: | 5kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | AIW 220 0.7mm*0.21 Hot Wind Self Bonding Rectangular Flat Enameled Copper Wire | Thermal Rating: | 220 |
|---|---|---|---|
| Insulation Material: | Amide Imide | Width: | 0.7mm |
| Thickness: | 0.21mm | Conductor Material: | Copper |
| Key Word: | AIW 220 0.7mm*0.21 Hot Wind Self Bonding Rectangular Flat Enameled Copper Wire | ||
| Highlight: | aiw 220 rectangular copper wire,hot wind rectangular copper wire,self bonding rectangular enamelled copper wire |
||

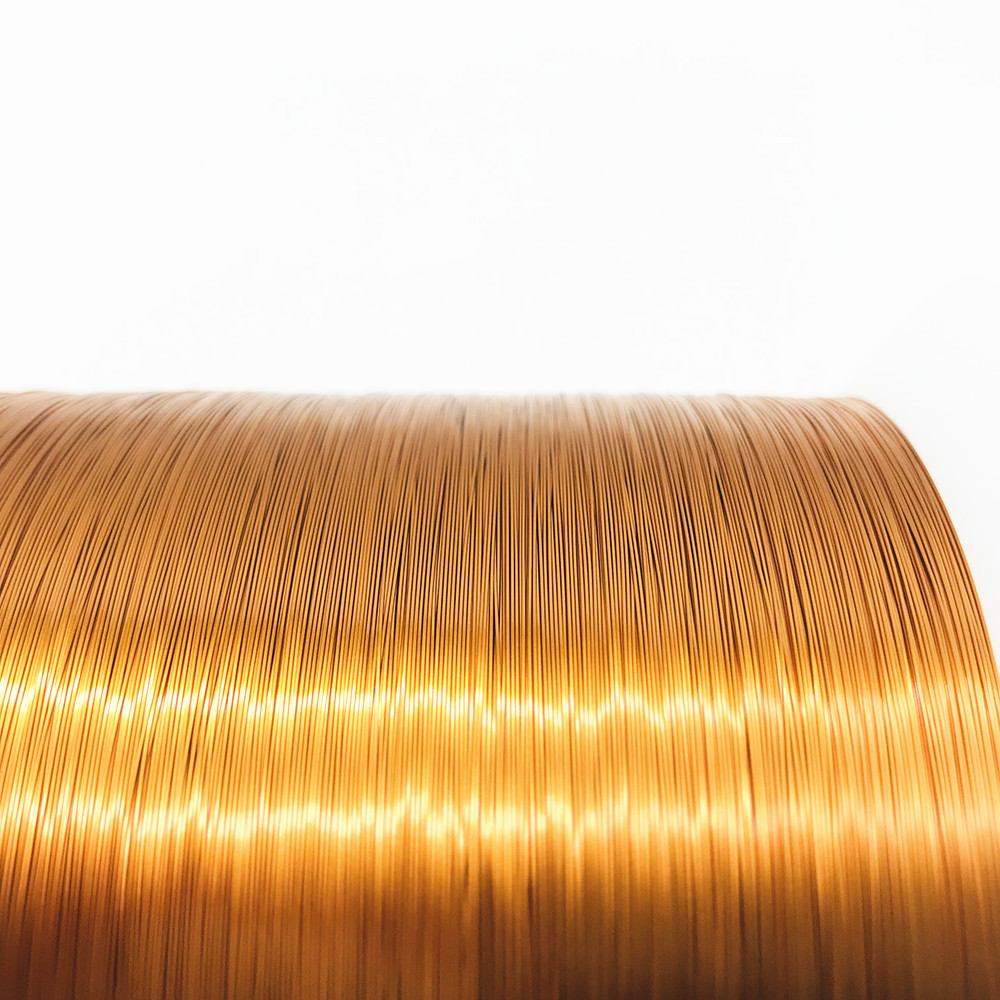

AIW 220 0.7mm*0.21 Hot Wind Self Bonding rectangular Flat Enameled Copper Wire
We offer high quality rectangular enameled copper wire, made of oxygen free copper, the flat enameled copper wire is widely used in motor, transformer etc. The rectangular enameled copper wire can be customized according to your needs.
|
Model: SFT-HB/AIWJ 220 0.7*0.21mm |
|||
|
Characteristics |
Standard
|
Test Result |
|
|
Appearance |
Smooth Equality
|
Smooth Equality |
|
|
Conductor Diameter(mm)
|
Width |
0.70±0.060 |
0.712 |
|
Thickness |
0.21±0.009 |
0.205 |
|
|
Min.thickness of insulation(mm)
|
Width |
0.014-0.021 |
0.020 |
|
Thickness |
0.014-0.021 |
0.019 |
|
|
Min. Thickness of bonding layer
|
Width |
0.004-0.008 |
0.008 |
|
Thickness |
0.004-0.008 |
0.008 |
|
|
Overall Diameter(mm)
|
Width |
0.770 |
0.768 |
|
Thickness |
0.265 |
0.145 |
|
|
Pinhole |
Max. 3hole/m
|
0 |
|
|
Flexibility and Adherence |
No crack
|
No crack |
|
|
Conductor Resistance (Ω/km at 20℃) |
Max 0.122
|
0.133 |
|
|
Breakdown Voltage |
Min 0.30kv
|
2.10kv |
|
|
Heat shock |
No Crack
|
No Crack |
|
|
Conclution |
Pass |
||
