| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | UEW |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Polyurethane 2UEW155 0.045mm Motor Winding Insulated Copper Magnet Wire | Color: | Red/Green/Normal |
|---|---|---|---|
| Certification: | ISO9001/ISO14001/UL/SGS | Diameter: | 0.06m |
| Standard: | GB/T5013.3/IEC60245-3:1994 | Conductor: | Copper |
| Insulation: | Polyurethane | Rated Temperature: | 155/180 |
| Key Word: | Enameled Copper Wire | ||
| Highlight: | polyurethane copper magnet wire,0.045mm copper magnet wire,motor winding enamelled copper wire |
||

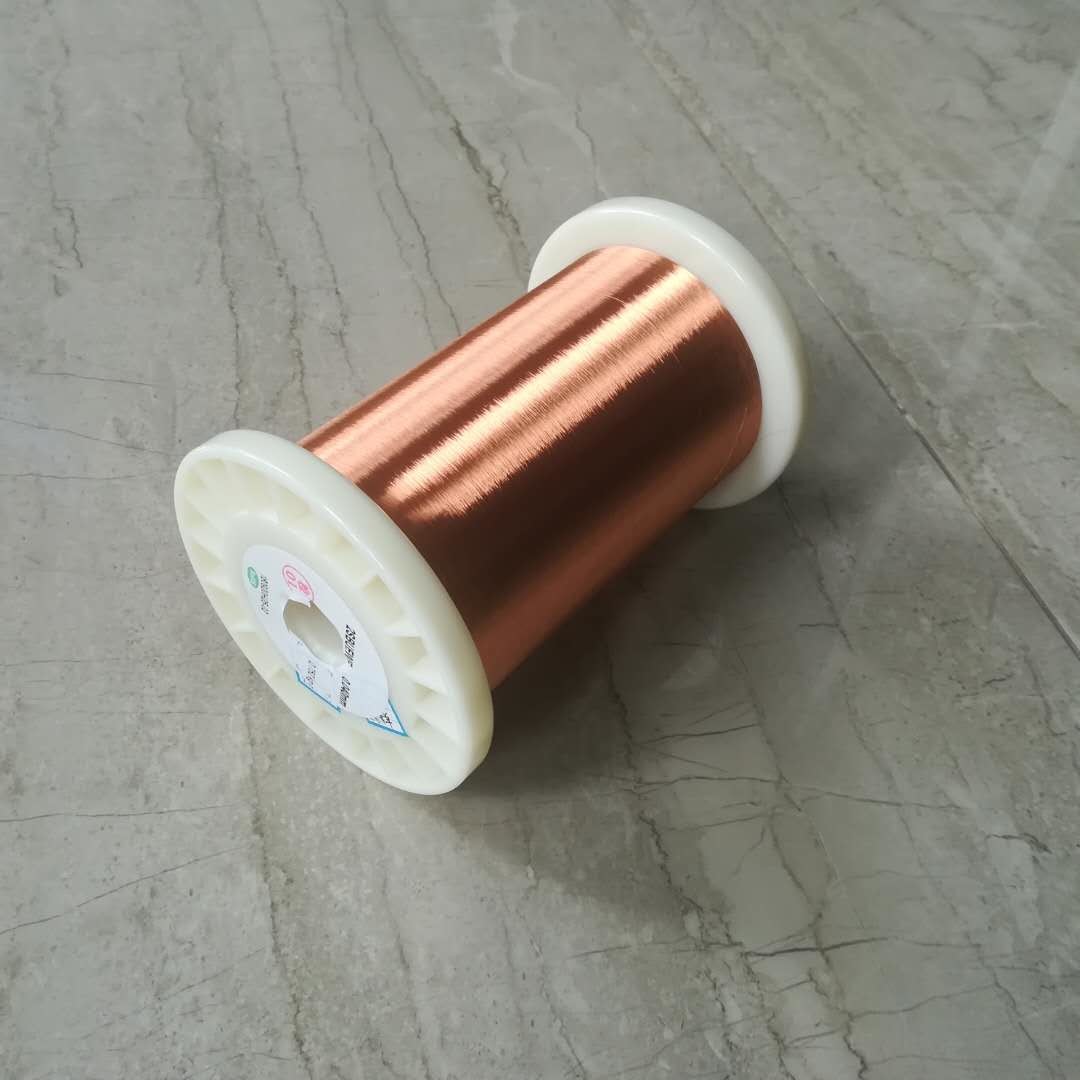

Polyurethane 2UEW155 0.045mm Motor Winding Insulated Copper Magnet Wire
Main Features of enameled copper wire
With good solderability, reduces coil production costs due to elimination of mechanical or chemical stripping.
Excellent film adhension and flexibility.
Extremely resistant to a variety of solvents including most varnishes and hardener catalysts.
Insulation Description of enameled copper wire
UEW is a film insulation compcsed of Polyisocy-anate & Polyol. It's widely used in coils and motor windings.
|
Name |
Polyurethane 2UEW155 0.045mm Motor Winding Insulated Copper Magnet Wire |
|
Key word |
Enameled copper wire |
|
Insulation |
Polyurethane |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.045mm |
|
Type |
Enameled copper wire |
