Detail Information

Name:	Ultra-thin Polyurethane 0.06mm Enamel Coating Insulated Copper Wire	Color:	Red/Green/Normal
Certification:	ISO9001/ISO14001/UL/SGS	Diameter:	0.06m
Standard:	GB/T5013.3/IEC60245-3:1994	Conductor:	Copper
Insulation:	Polyurethane	Rated Temperature:	155/180
Key Word:	Enameled Copper Wire
Highlight:	ultrathin enamelled copper wire , 0.06mm enamelled copper wire , 0.06mm enamel insulated copper wire

Product Description

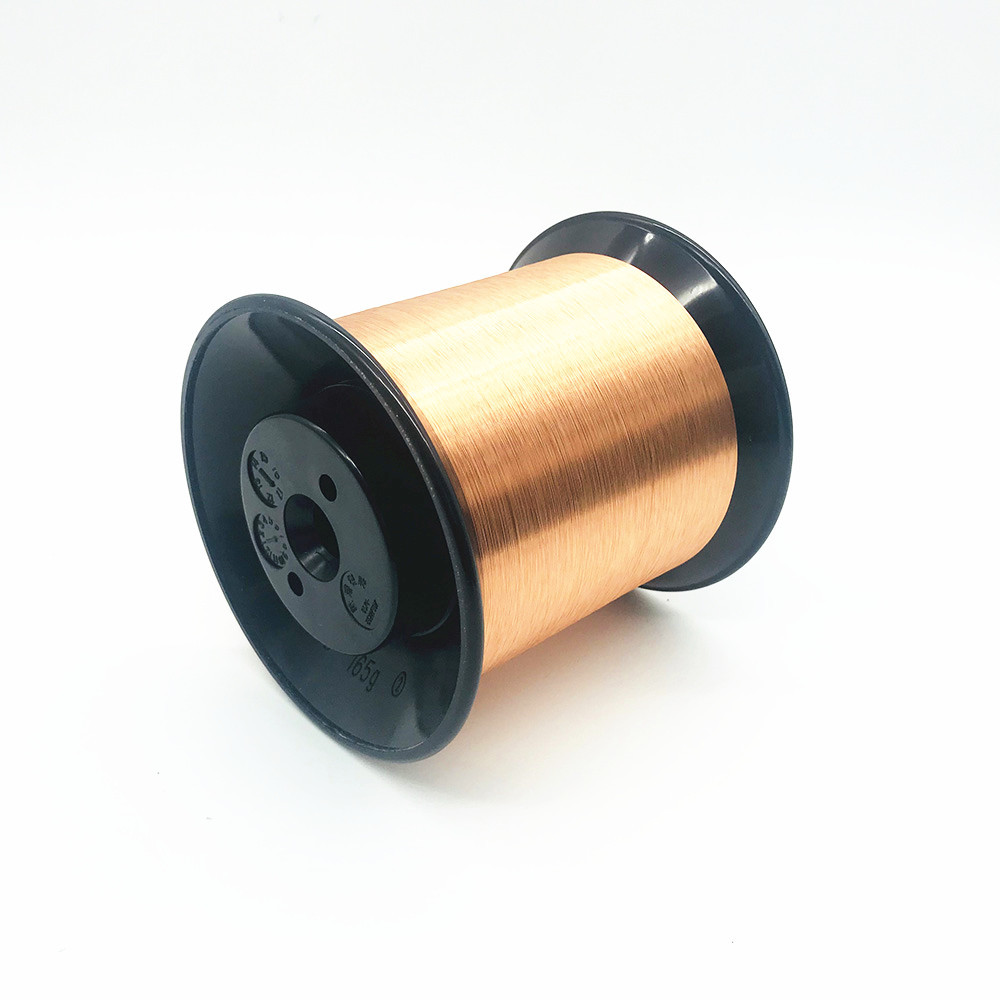

Ultra-thin Polyurethane 0.06mm Enamel Coating Insulated Copper Wire

0.06mm enameled copper wire is uesed for various type of motor windings, with or without self bonding layer are available. Polyurethane coating, thermal grade 155/180.

Name	Ultra-thin Polyurethane 0.06mm Enamel Coating Insulated Copper Wire
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.06mm
Type	Enameled copper wire

NO.	Characteristics	Technical requests		Test Results			Conclusion
				Sample1	Sample 2	Sample 3
1	Surface	Good		OK	OK	OK	OK
2	Bare Wire Diameter	0.060±	0.002	0.0600	0.0600	0.0600	OK
			0.002
3	Insulation thickness	≥ 0.008 mm		0.0100	0.0120	0.0110	OK
4	Overall diameter	≤ 0.074 mm		0.0700	0.0720	0.0710	OK
5	Electrical Resistance	≤6.415Ω/m		6.009	6.081	6.013	OK
6	Elongation	≥ 14 %		21.7	22.6	21.9	OK
7	Breakdown voltage	≥500 V		1769	1961	1886	OK
8	Pinbole test	≤ 5 hole/5m		0	0	0	OK
9	Enamel continuity	≤ 15 hole/30m		0	0	0	OK
Remark
	Test items		Technical Requests		Results		Conclusion
1	Adhesive		No crack		OK		Approval
2	Cut-through		200℃ 2mins no crack		OK
3	Heat Shock		175±5℃/30min no crack		OK
4	Solder Ability		390± 5℃ 2Sec Smooth		OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Ultrathin Enamelled Copper Wire Polyurethane 0.06mm Insulated 0

Ultrathin Enamelled Copper Wire Polyurethane 0.06mm Insulated 1

Ultrathin Enamelled Copper Wire Polyurethane 0.06mm Insulated 2

Ultrathin Enamelled Copper Wire Polyurethane 0.06mm Insulated 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	UEW

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
