| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 1.8*0.3mm |
| Minimum Order Quantity: | 10 Kilogram/Kilograms |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Name: | Super Thin High Temperature Hot Wind Self Adhesive Flat Enameled Copper Wire | Thermal Rating: | 155/180 |
|---|---|---|---|
| Insulation Material: | UEW | Width: | 1.8mm |
| Thickness: | 0.3mm | Type: | Self Bonding Rectangular Enameled Copper Wire |
| Key Word: | Rectangular Enameled Copper Wire | ||
| Highlight: | super thin flat copper wire,high temperature flat copper wire,self adhesive flat magnet wire |
||

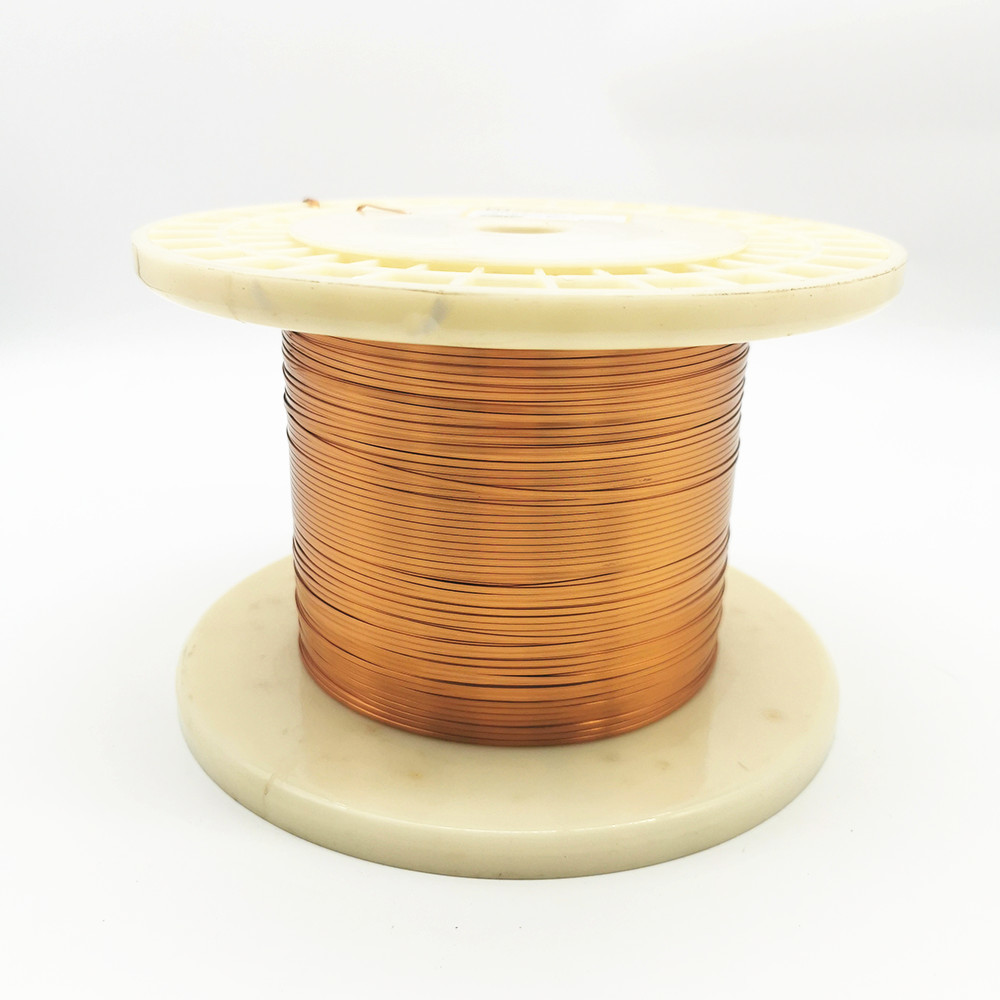

Super Thin High Temperature Hot Wind Self Adhesive Flat Enameled Copper Wire
We customzied rectangular enameled copper wire, both ordinary rectangular enameled copper wire and self bonding.
Rectangular enameled copper wire with a high heat and resistance and very good resistance to transformer oils and typical solvents.
Rectangular enameled copper wire is typically used in lightweight designs, dry transformers, small transformers and welding transformers.
|
Name |
Rectangular enameled copper wire |
|
Key word |
rectangular enameled copper wire |
|
Insulation |
Polyurethane |
|
Thermal rating |
180 degree |
|
Width |
1.8mm |
|
Thickness |
0.3mm |
|
Type |
Self bonding rectangular enameled copper wire |
| Characteristics | Standard | Test Result | |
| Appearance | Smooth Equality | Smooth Equality | |
| Conductor Diameter | Width | 1.80±0.060 | 1.791 |
| Thickness | 0.30±0.009 | 0.295 | |
| Thickness Insulation | Width | 0.005 | 0.067 |
| Thickness | 0.005 | 0.043 | |
| Min Thickness of Bonding(mm) | Width | 0.005 | 0.007 |
| Thickness | 0.005 | 0.009 | |
| Overall Diameter | Width | 1.800-1.885 | 1.858 |
| Thickness | 0.335-0.345 | 0.338 | |
| Pinhole | ≤3hole/m | 0 | |
| Elongation | ≥30 % | 35 | |
| Flexibility and Adherence | No crack | No crack | |
| Conductor Resistance (Ω/km at 20℃) | ≤35.32 | 32.97 | |
| Breakdown Voltage | ≥0.7KV | 2.5KV | |
| Heat shock | No Crack | No Crack | |
| Conclution | Pass | ||
