| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 1.8mm * 0.3mm |
| Minimum Order Quantity: | 10 Kilogram/Kilograms |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Rectangular Enameled Copper Wire | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | UEW | Width: | 1.8mm |
| Thickness: | 0.3mm | Type: | Hot Wind Self Bonding Wire |
| Highlight: | polyurethane flat copper wire insulated,0.3mm flat copper wire insulated,0.3mm flat enameled copper wire |
||

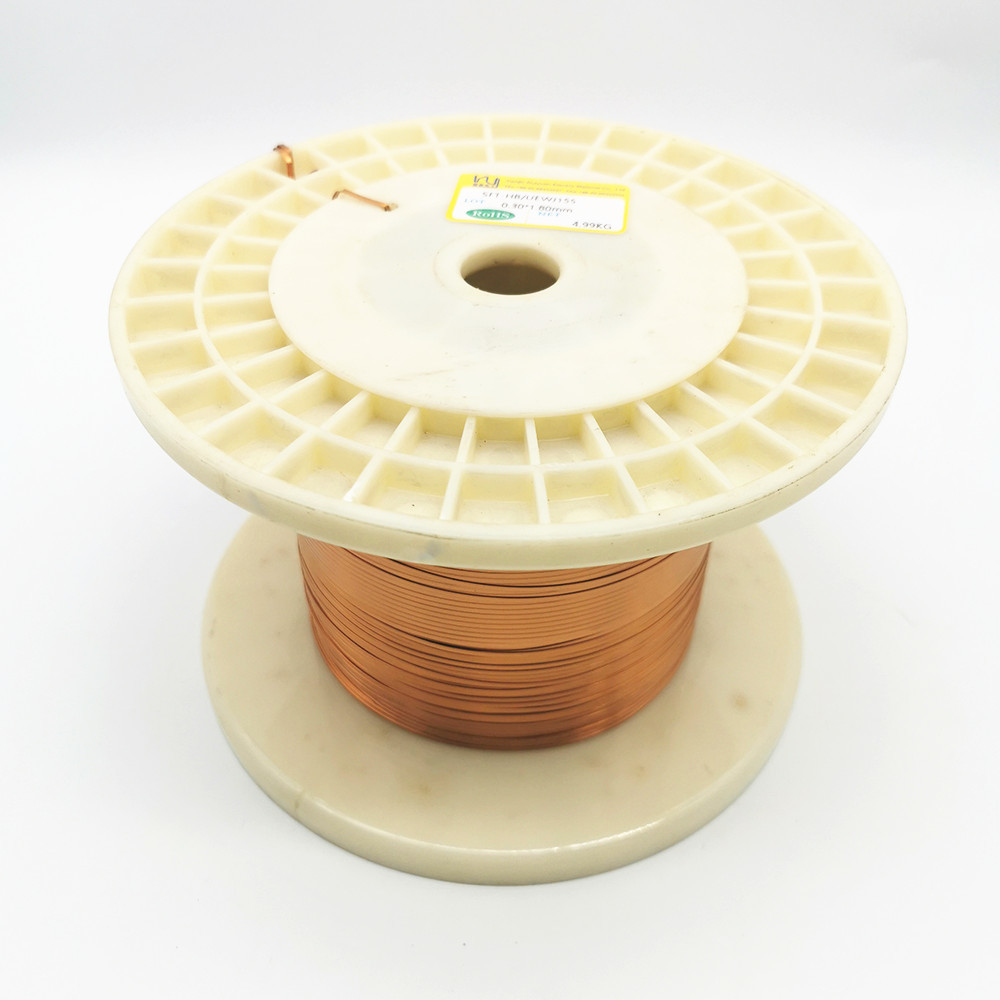

Polyurethane 1.8mm * 0.3mm Hot Wind Self Bonding Flat Enameled Copper Wire
We supply rectangular enameled copper wire, it' widely used in motor. The size can be customized.
| Characteristics | Standard | Test Result | |
| Appearance | Smooth Equality | Smooth Equality | |
| Conductor Diameter | Width | 1.80±0.060 | 1.791 |
| Thickness | 0.30±0.009 | 0.295 | |
| Thickness Insulation | Width | 0.005 | 0.067 |
| Thickness | 0.005 | 0.043 | |
| Min Thickness of Bonding(mm) | Width | 0.005 | 0.007 |
| Thickness | 0.005 | 0.009 | |
| Overall Diameter | Width | 1.800-1.885 | 1.858 |
| Thickness | 0.335-0.345 | 0.338 | |
| Pinhole | ≤3hole/m | 0 | |
| Elongation | ≥30 % | 35 | |
| Flexibility and Adherence | No crack | No crack | |
| Conductor Resistance (Ω/km at 20℃) | ≤35.32 | 32.97 | |
| Breakdown Voltage | ≥0.7KV | 2.5KV | |
| Heat shock | No Crack | No Crack | |
| Conclution | Pass | ||
