| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.06mm |
| Minimum Order Quantity: | 5kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Magnet Wire | Diameter: | 0.06mm |
|---|---|---|---|
| Insulation: | Polyurethane | Thermal Rating: | 155/180 |
| Conductor Material: | Copper | Size Range: | 0.011mm-1.2mm |
| Highlight: | 2uew enameled magnet wire,0.06mm enameled magnet wire,enameled copper magnet wire ultra fine |
||

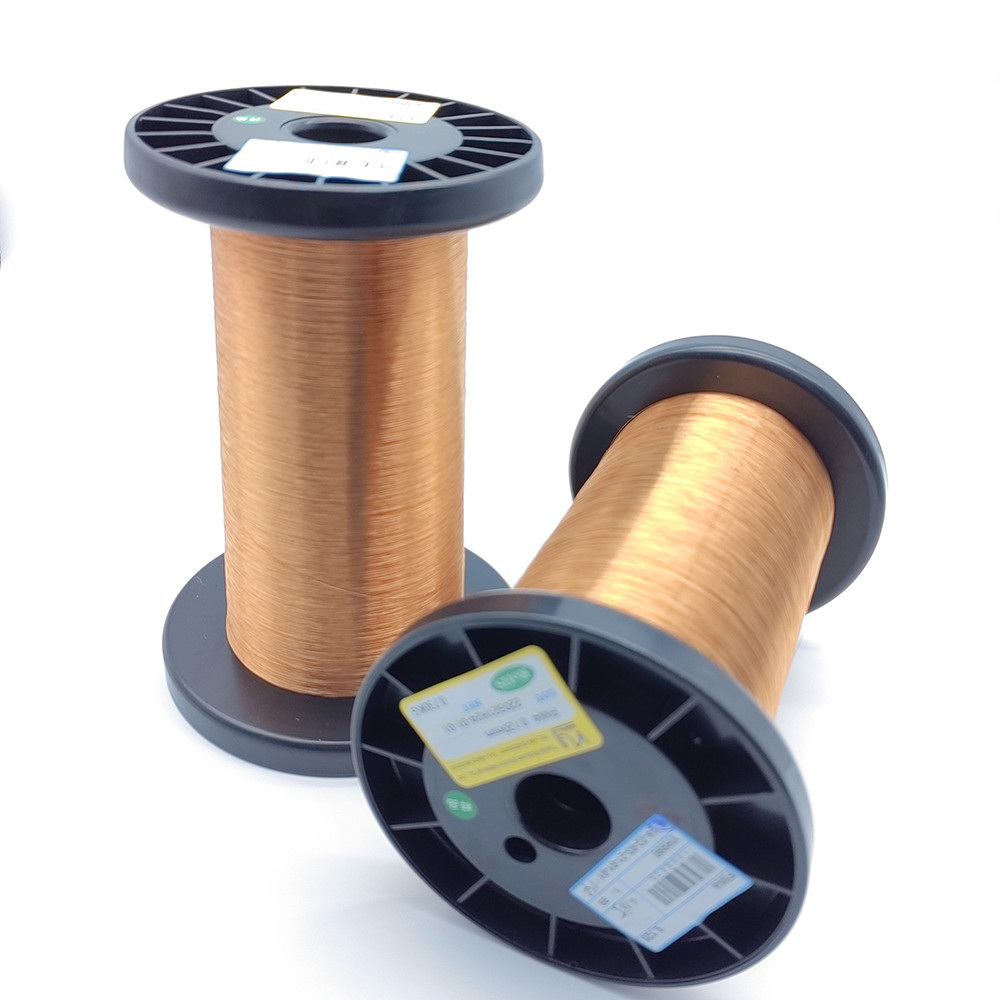

2UEW 0.06mm Solderable Magnet Wire Ultra Fine Enameled Copper Wire
Features:
1.Solid enough, the wire is not easy to be broken
2.Insulation thickness can be customized
3.Wire can reach almost 0 pinhole
4.High consistency
5.The wire is even and tidy, which is convenient for users to wind
6. Low temperature soldering
7. Bonding method options: Hot air,Solvent and others
| Characteristics | Technical requests | Test result | Result | ||
| Surface | Good | OK | OK | OK | |
| Coating Thickness | ≥ 0.008 mm | 0.0100 | 0.0120 | 0.0110 | OK |
| Overall Diameter | ≤ 0.074 mm | 0.0700 | 0.0720 | 0.0710 | OK |
| Conductor Resistance | ≤6.415Ω/m | 6.009 | 6.081 | 6.013 | OK |
| Elongation | ≥ 14 % | 21.7 | 22.6 | 21.9 | OK |
| Breakdown Voltage | ≥500 V | 1769 | 1961 | 1886 | OK |
| Pinhole Test | ≤ 5 holes/5m | 0 | 0 | ||
| Continuity | ≤ 15 hole/30m | 0 | 0 | 0 | OK |
| Test Items | Technical Requests | Results | |||
| Adhesive | Coating layer is good | OK | |||
| Solder Ability | 390℃ ±5℃ Smooth | OK | |||
| Heat Shock | 175±5℃/30min no crack | OK | |||
