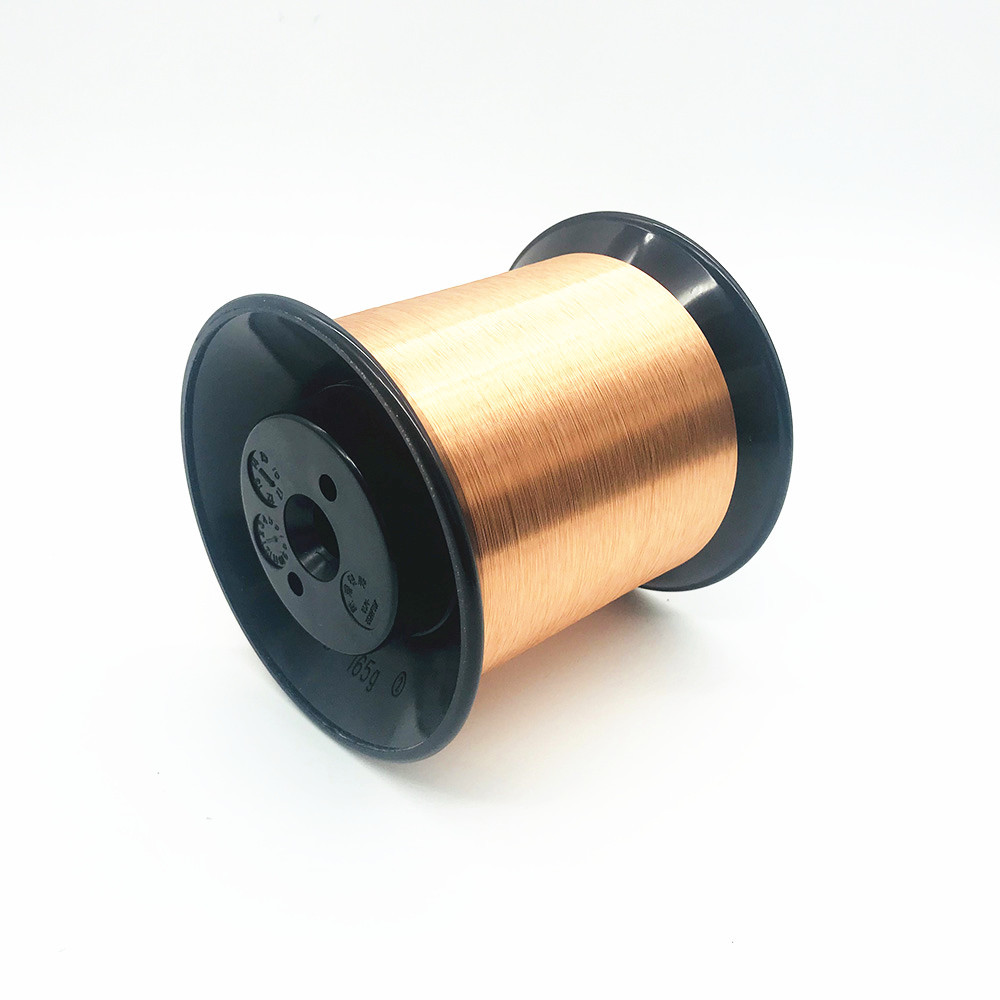

Product Name: | Enameled Copper Wire | Size: | 0.08mm |
---|---|---|---|
Insulation: | Polyurethane | Thermal Grade: | 155 |
Conductor Material: | Copper | Conductor Type: | Solid |
Highlight: | Round enamelled copper winding wire,0.08mm enamelled copper winding wire,0.08mm polyurethane enameled copper wire |
High Quality Coils , Windings Using Enameled Copper Round Wire
We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of marketexperience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm,and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with ashare of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materialsWe surpass them in terms of "service, quick response"; 30% lower "price" is our advantage.
<
Characteristics |
Technical requests |
Test Results | Conclusion |
|||
Sample 1 | Sample 2 | Sample 3 | ||||
Surface | Good | OK | OK | OK | OK | |
Bare Wire Diameter |
0.080± |
0.002 | 0.45 |
0.45 |
0.45 |
OK |
0.002 | ||||||
Coating Thickness | ≥ 0.008 mm | 0.011 | 0.012 | 0.012 | OK | |
Overall Diameter | ≤ 0.094 mm | 0.091 | 0.092 | 0.092 | OK | |
Conductor Resistance | ≤ 3.608 Ω/m | 3.456 | 3.443 | 3.437 | OK | |
Elongation | ≥ 16 % | 19 | 19 | 20 | OK | |
Breakdown Voltage | ≥ 425 V | 1578 | 1496 | 1723 | OK | |
Pinhole Test | ≤ 5 faults /5m | 0 | 0 | 0 | OK | |
Continuity | ≤ 40 faults/30m | 0 | 0 | 0 | OK | |
Test Items | Technical Requests | Results | ||||
Adhesive | Coating layer is good | OK | ||||
Cut-through | 230℃ 2minsno breakdown | OK | ||||
Heat Shock | 175±5℃/30min no crack | OK | ||||
Solder Ability | 390± 5℃ 2SecSmooth | OK |
