Product Name: | Enameled Copper Wire | Insulation: | Polyurethane |
---|---|---|---|
Size: | 0.032mm | Thermal Grade: | 155 / 180 |
Conductor Material: | Copper | Conductor Type: | Solid |
Highlight: | 0.032mm enamel coated wire,0.032mm enamel coated Generator wire,Polyurethane Insulated Enamel Coated Wire |

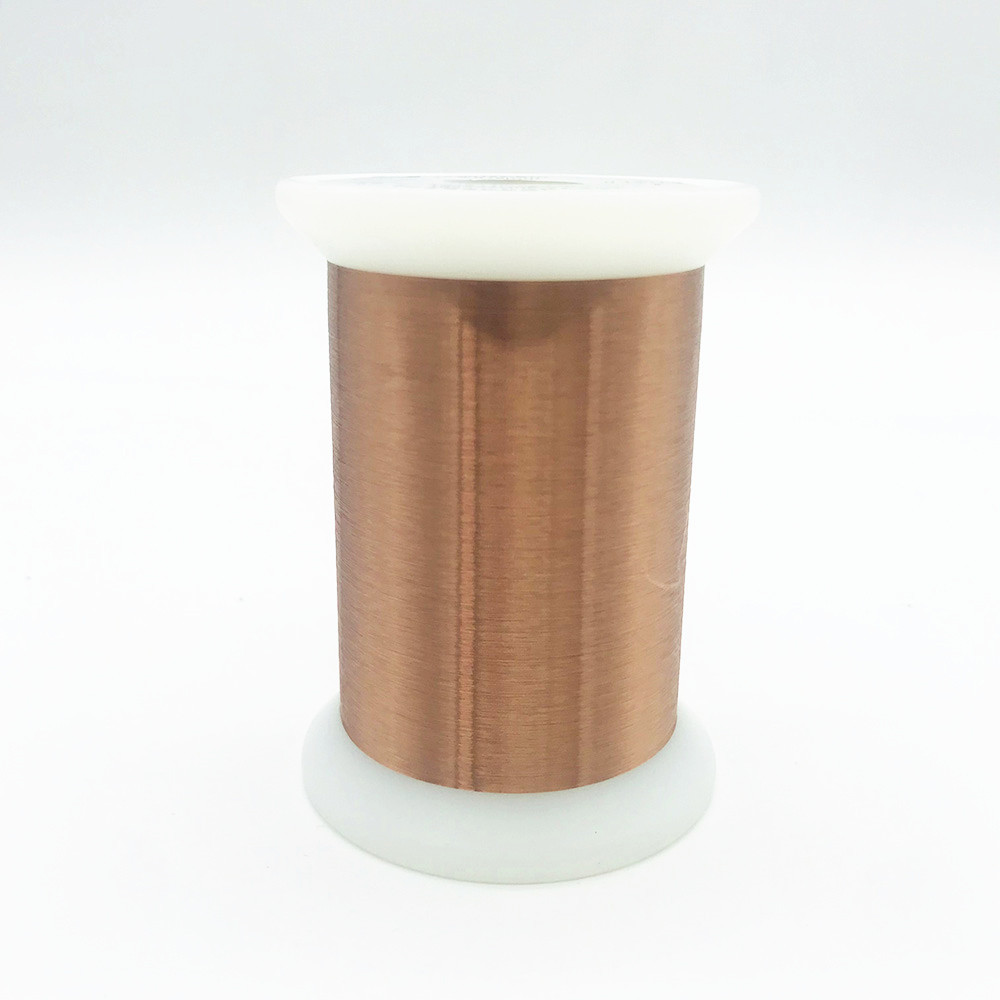

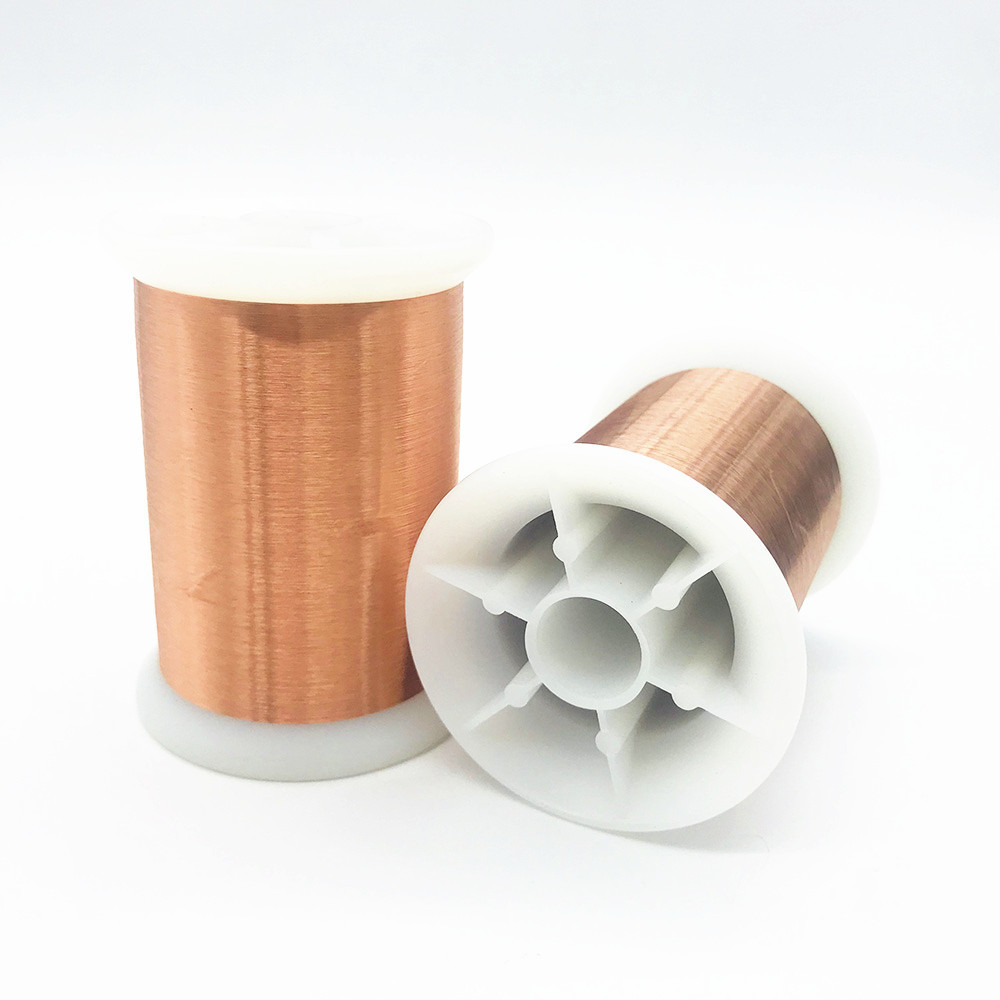

0.032mm Polyurethane Insulated Copper Wire Ultra Thin Enameled Copper Wire For Generator
We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of marketexperience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm,and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with ashare of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materialsWe surpass them in terms of "service, quick response"; 30% lower "price" is our advantage.
Characteristics |
Technical requests |
Test Results | Conclusion |
|||
Sample 1 | Sample 2 | Sample 3 | ||||
Surface | Good | OK | OK | OK | OK | |
Bare Wire Diameter |
0.032± |
0.001 | 0.032 |
0.032 |
0.032 |
OK |
0.001 | ||||||
Coating Thickness | ≥ 0.005 mm | 0.009 | 0.008 | 0.008 | OK | |
Overall Diameter | ≤ 0.042 mm | 0.041 | 0.04 | 0.04 | OK | |
Conductor Resistance | ≤ 22.843 Ω/m | 22.032 | 22.076 | 22.716 | OK | |
Elongation | ≥ 10 % | 14 | 15 | 14 | OK | |
Breakdown Voltage | ≥ 275 V | 1456 | 1312 | 1332 | OK | |
Pinhole Test | ≤ 5 faults/5m | 0 | 0 | 0 | OK | |
Continuity | ---- | ---- | ---- | ---- | ---- | |
Test Items | Technical Requests | Result | ||||
Adhesive | Coating layer is good | OK | ||||
Cut-through | 230℃ 2min no breakdown | OK | ||||
Heat Shock | 200± 5℃/30min no crack | OK | ||||
Solder Ability | 390± 5℃ 2Sec Smooth | OK | ||||
Solvent Resistance | No blister, no expansion, no shed | OK |
