Detail Information

Type:	Insulated	Conductor Material:	Copper
Conductor Type:	Solid	Insulation Material:	Enameled
Standard:	IEC/JIS/NEMA	Insulation:	Polyurethane
Solderability:	Yes
Highlight:	Ultra Fine Enamelled Copper Winding Wire , Good Performance Enamelled Copper Wire , UEW Enamelled Copper Wire

Product Description

Enamelled Copper Winding Wire For High Speed Automated Routing

The conductor is the basic material of the enameled wire. Commonly used materials for conductors are copper, aluminum and other alloy materials. Usually the resistance in an electronic component is determined by the conductor. The cross-sectional area and length of the conductor affect the resistance.The type of insulating film: The insulating film is divided into single film and heavy film. Single film includes UEW, PEW, EIWHE AIW etc. Heavy film refers to an additional coating of nylon or self-adhesive paint on a single film.Magnet wire has excellent mechanical, electrical and chemical performance, especially in high current output, heat resistance andcorrosion resisitance.t is mainly used in high-voltage transformers, electric machines, generator, etc. A special type of enamelled wire is self bonding or adelaide enameleld wire.

FEATURES

a) High resistance to heat shock.
b) High temperature.
c) Good performance in cut-through.
d) Suitable for high-speed automated routing.
e) Able to be direct weld, with no pinhole.
f) Resistive to high frequency, wearing, refrigerants and electronics corona.
g) High breakdown voltage, small dielectric loss angle.
h) Environment-friendly.

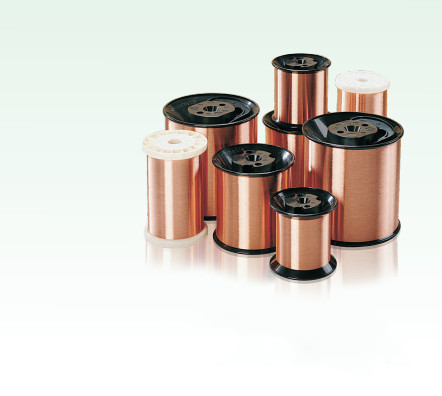

Enamelled Copper Winding Wire For High Speed Automated Routing 0

Nominal Diameter	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Electrical Resistance
mm	mm			≥ V		Ω/km (20℃)
				Mandrel Method	Twisted Method	Min.	Max.
0.012	----	0.013	0.015	50.000	----	142.64	157.65
0.013	----	0.015	0.017	70.000	----	118.41	133.98
0.014	----	0.016	0.018	70.000	----	102.64	120.45
0.015	----	0.017	0.020	80.000	----	89.83	104.41
0.016	----	0.018	0.021	90.000	----	74.67	97.56
0.017	----	0.019	0.022	90.000	----	66.60	85.75
0.018	----	0.020	0.023	100.000	----	59.77	75.95
0.019	----	0.021	0.024	100.000	----	53.95	67.75
0.020	0.001	0.022	0.024	100.000	----	51.83	60.81
0.050	±0.002	0.007	0.062	400.000	1200.00	7981.00	9528.00
0.055	±0.002	0.007	0.068	400.000	1200.00	6642.00	7815.00
0.060	±0.002	0.007	0.073	500.000	1200.00	5614.00	6526.00
0.085	±0.002	0.008	0.099	550.000	1200.00	2851.00	3187.00
0.090	±0.002	0.010	0.106	650.000	1200.00	2550.00	2835.00
0.095	±0.002	0.010	0.111	650.000	1200.00	2294.00	2538.00
0.100	±0.002	0.011	0.118	650.000	1200.00	2074.00	2286.00
0.110	±0.002	0.011	0.129	----	1300.00	1720.00	1882.00
0.120	±0.002	0.011	0.139	----	1500.00	1450.00	1577.00
0.130	±0.002	0.011	0.149	----	1500.00	1239.00	1340.00
0.140	±0.002	0.011	0.159	----	1600.00	1070.00	1153.00
0.150	±0.002	0.011	0.169	----	1700.00	934.10	1002.00
0.160	±0.002	0.012	0.180	----	1700.00	822.30	879.40
0.170	±0.003	0.013	0.192	----	2000.00	721.10	787.10
0.180	±0.003	0.014	0.204	----	2000.00	644.40	700.70
0.190	±0.003	0.014	0.214	----	2000.00	579.40	627.80
0.200	±0.003	0.014	0.224	----	2000.00	523.70	565.70
0.210	±0.003	0.014	0.234	----	2000.00	475.70	512.30
0.220	±0.003	0.014	0.245	----	2200.00	434.00	466.20
0.230	±0.003	0.016	0.257	----	2200.00	397.50	426.00
0.240	±0.003	0.016	0.267	----	2200.00	365.50	390.80
0.250	±0.003	0.016	0.277	----	2300.00	337.10	359.80
0.260	±0.004	0.018	0.287	----	2300.00	309.60	335.00
0.270	±0.004	0.018	0.297	----	2300.00	287.40	310.30
0.280	±0.004	0.022	0.313	----	2300.00	267.60	288.20
0.290	±0.004	0.022	0.323	----	2500.00	249.70	268.40
0.300	±0.004	0.022	0.334	----	2500.00	233.50	250.60

Tag:

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	ISO9001/ISO14001 /UL/SGS
Model Number:	UEW

Minimum Order Quantity:	2kgs
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	7-15 work days
Payment Terms:	Negotiation
Supply Ability:	200 Ton/Tons per Month
