| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | UL/ROHS/ICE/ISO9001/ISO14001 |
| Model Number: | T37 |
| Minimum Order Quantity: | 1000pcs |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 workding days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000000 Piece/Pieces per Month |
| Size: | 50cm*35cm*51cm | Working Current: | 15A |
|---|---|---|---|
| Inductance: | 4mH | Shape: | RING |
| Package: | Carbon Box | ||
| Highlight: | ac line filters,line filter transformer |
||

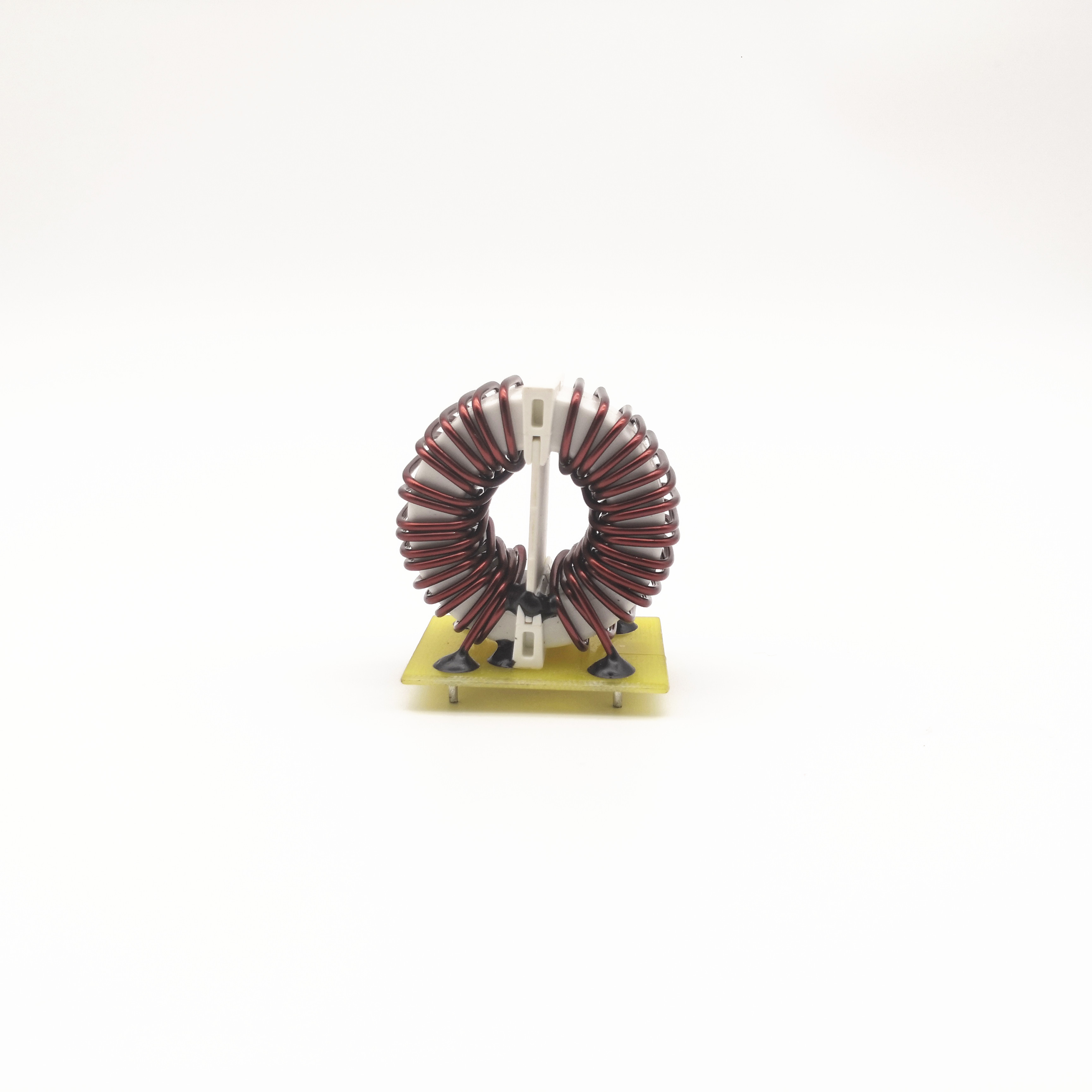

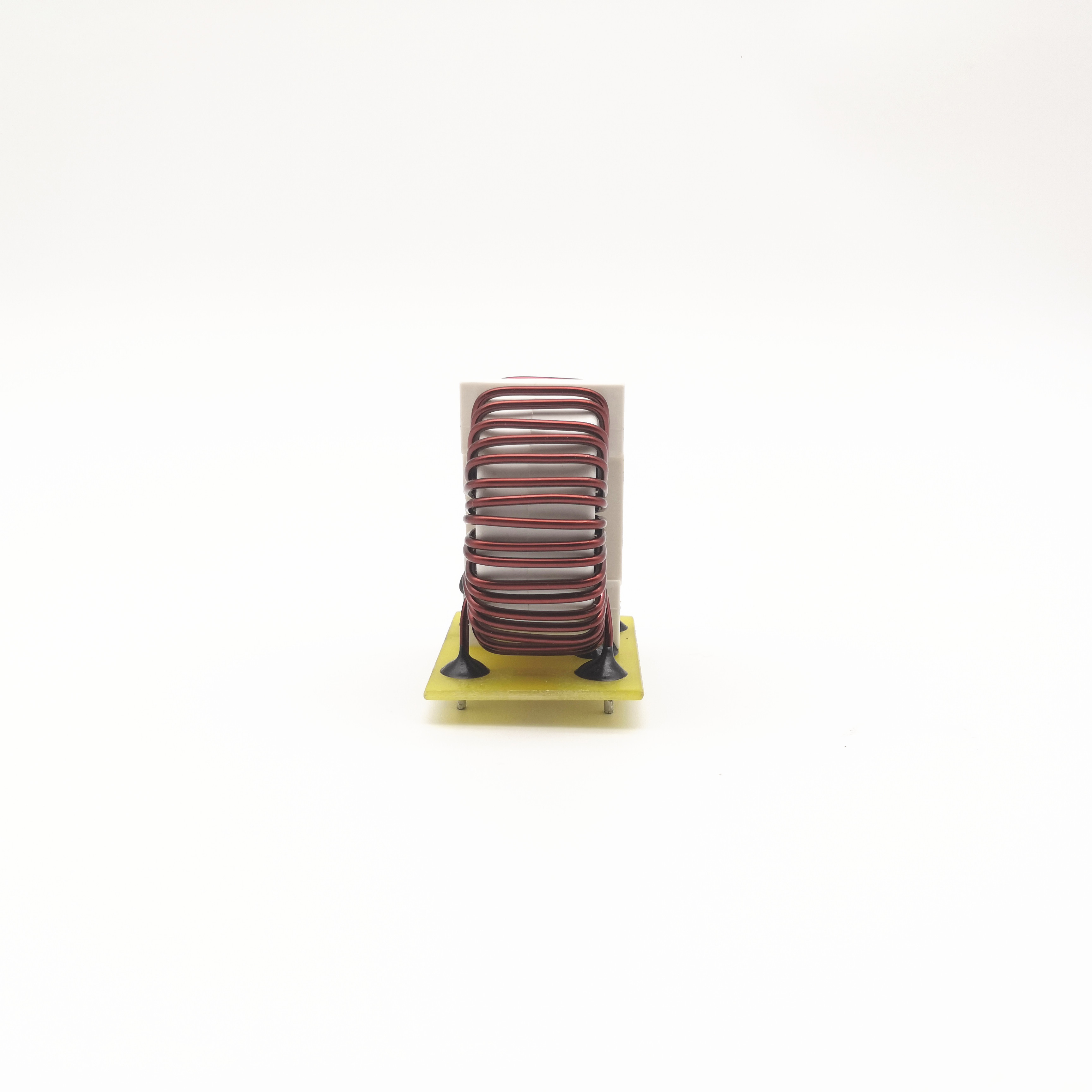

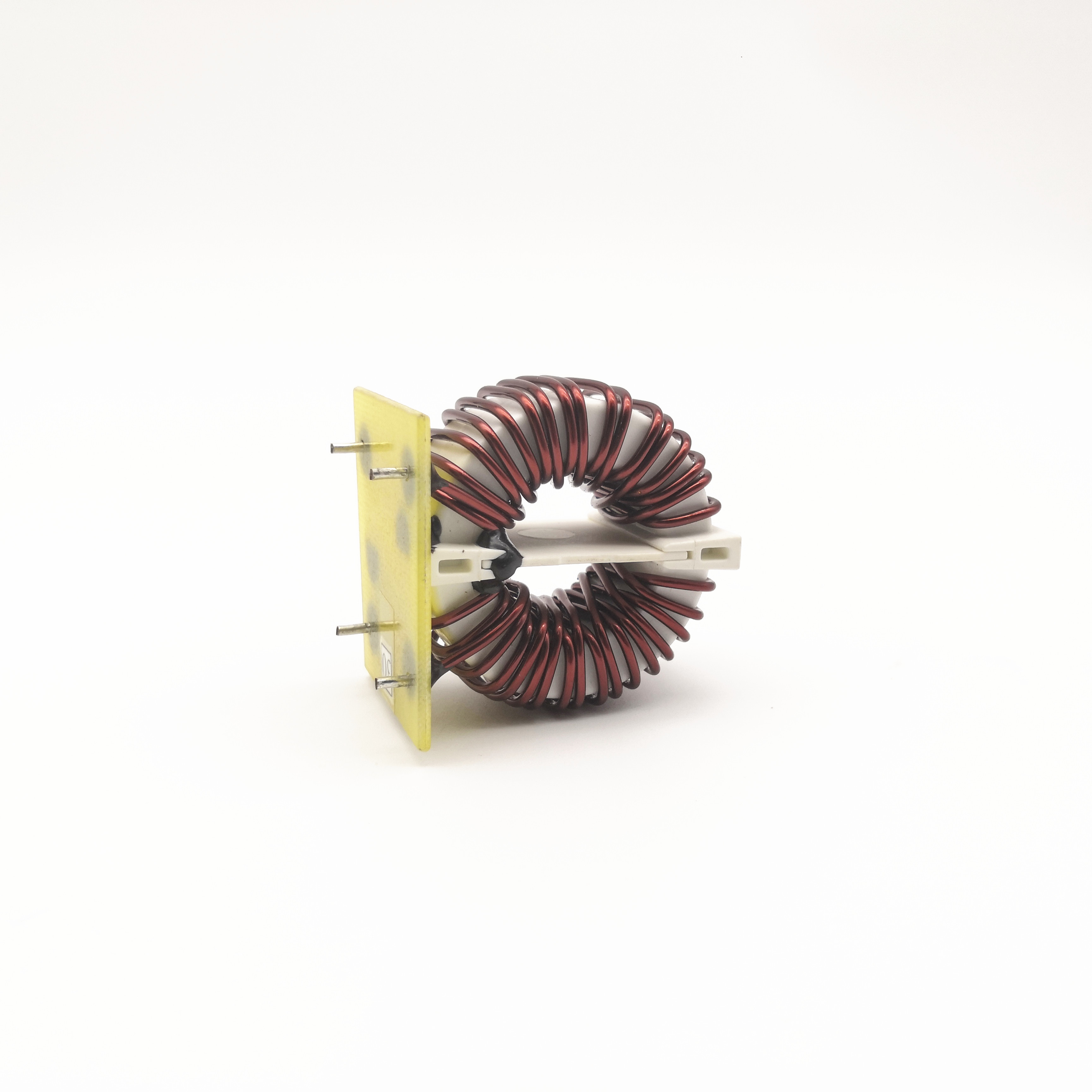

FACTORY PRICE THROUGH HOLE CHOKE COIL INDUCTOR ULTR FINE CRYSTAL INDUCTOR FOR PORTABLE EQUIPMENTS
Common mode Inductor, also known as common mode choke, is commonly used in computer switching power supplies to filter common mode electromagnetic interference signals. In the board design, the common mode inductor also acts as an EMI filter to suppress the electromagnetic radiation generated by the high-speed signal line from radiating outward.
|
T37
|
|||
|
Dimention(mm)
|
Pin Quantity(pcs)
|
Pin Array(mm)
|
|
|
50*35*51
|
4
|
25/22
|
|
|
Resistance(MAX)
|
Inductance
|
Test Condition
|
|
|
L1-2=L4-3=50mΩ
|
L1-2=L4-3=4.0mH MIN 100K,1V
|
100KHZ/1V
|
|
