| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | UL/ROHS/ICE/ISO9001/ISO14001 |
| Model Number: | UU16 |
| Minimum Order Quantity: | 1000pcs |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 workding days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000000 Piece/Pieces per Month |
| Certification: | UL/ROHS/ICE/ISO9001/ISO14001 | Mode: | UU16 |
|---|---|---|---|
| Name: | Customized Power Line Filter | Type: | Passive Electronic Component |
| Function: | Storing Electrical Energy | Application: | Electronic Equipments |
| Highlight: | ac line filters,line filter transformer |
||

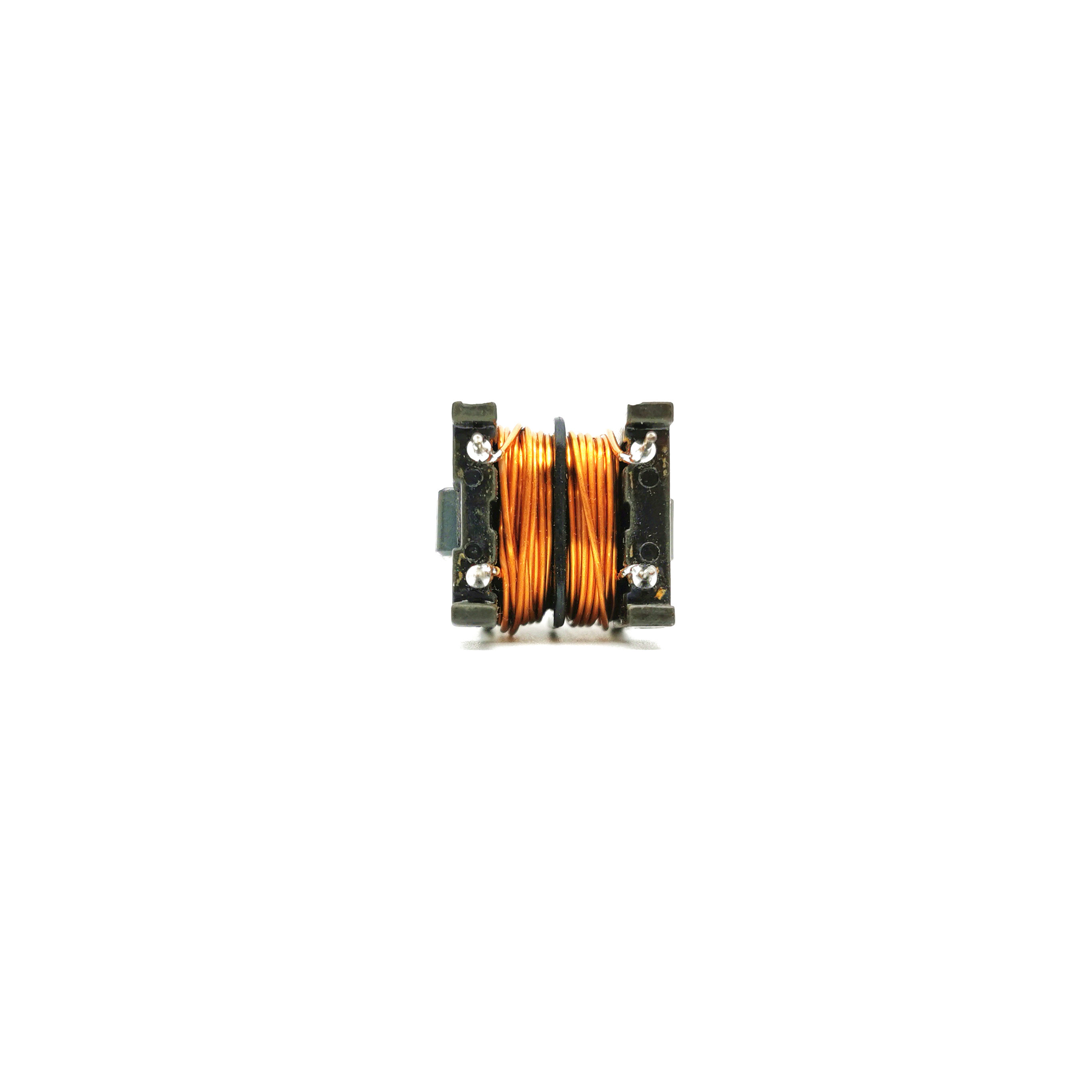

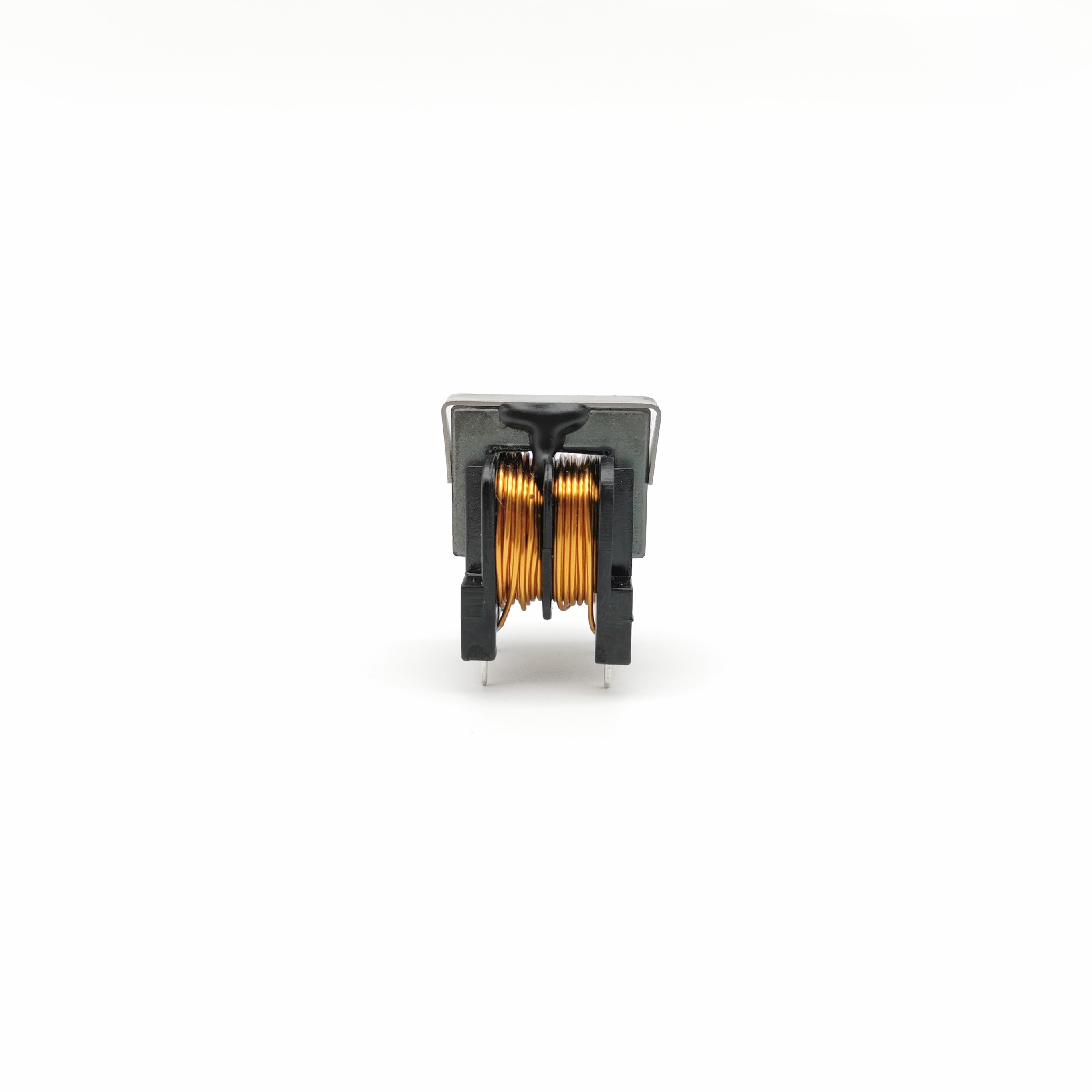

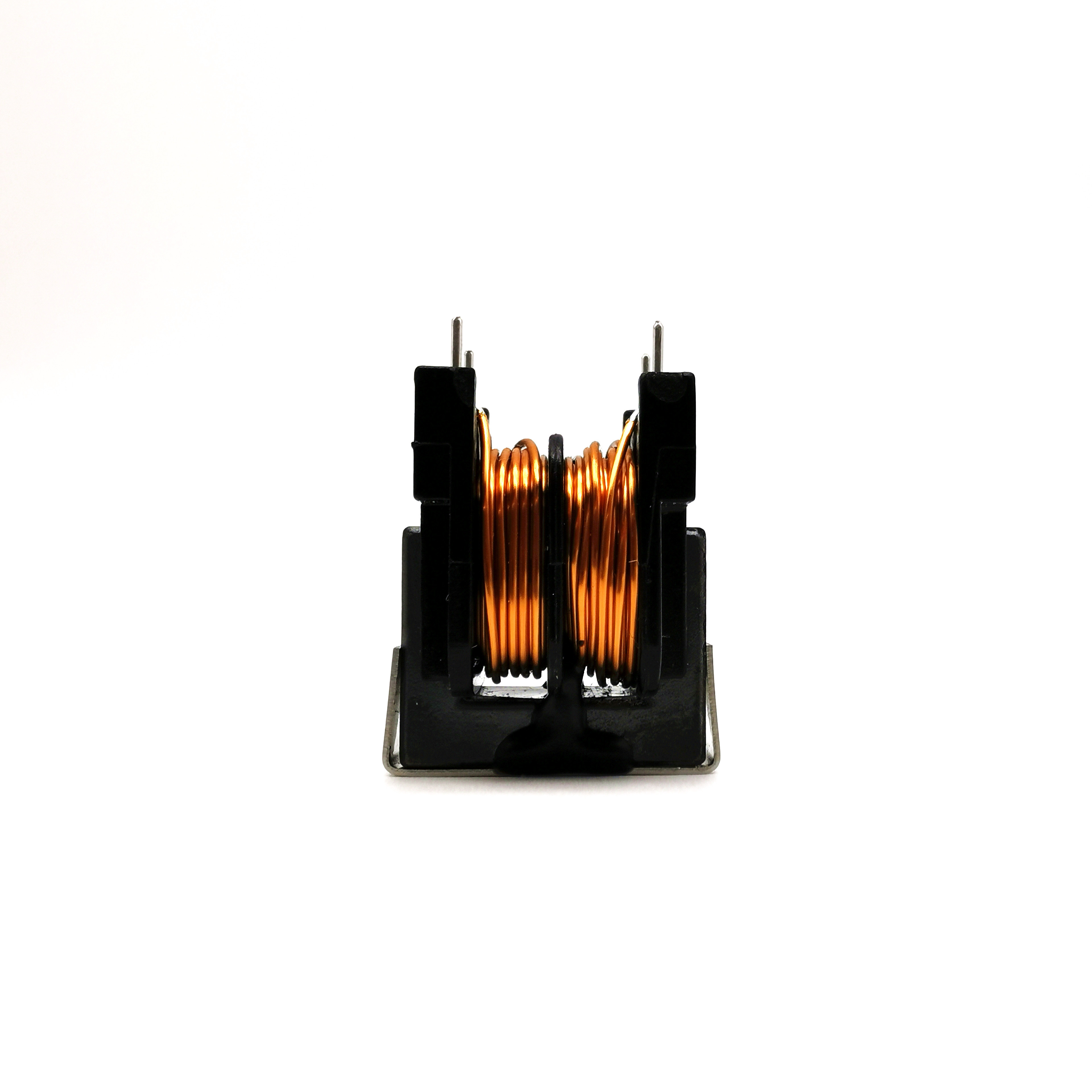

CUSTOMIZE LINE FILTER UU16 INDUCTOR FILTER CHOKE COMMON MODE CHOKE INDUCTOR
An inductor is a passive electronic component which is capable of storing electrical energy in the form of magnetic energy. Basically, it uses a conductor that is wound into a coil, and when electricity flows into the coil from the left to the right, this will generate a magnetic field in the clockwise direction.
|
UU16 Common Mode Inductor
|
|||
|
Dimention(mm)
|
Pin Quantity(pcs)
|
Pin Array(mm)
|
Operating Current(A/MAX)
|
|
23*19*27.5
|
4
|
13*10
|
2.5
|
|
Resistance(MAX)
|
Inductance
|
Leakage(MAX)
|
Test Condition
|
|
L1-2=L4-3=165mΩ MAX
|
5.0mH
|
/
|
1.0K,0.25V
|
