| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | UEW/AIW/EIW |
| Minimum Order Quantity: | 20 Kilogram/Kilograms |
| Price: | Negotiation |
| Packaging Details: | Carton with pallet |
| Delivery Time: | 2-15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Ton/Tons per Month |
| Type: | Insulated | Thermal Rating: | 155/180/220 |
|---|---|---|---|
| Insulation Material: | Enameled | Conductor Material: | Copper |
| Application: | Heating,transformer,motor | Thickness: | 0.35mm |
| Width: | 3.5mm | ||
| Highlight: | rectangular magnet wire,high voltage copper wire |
||

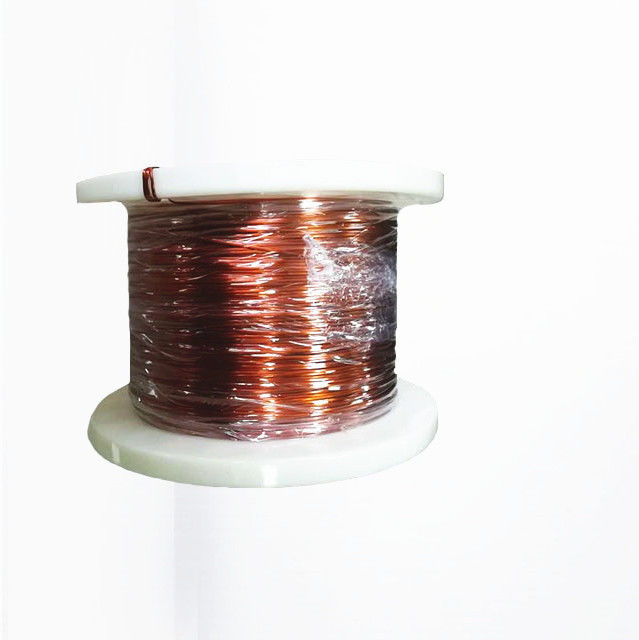

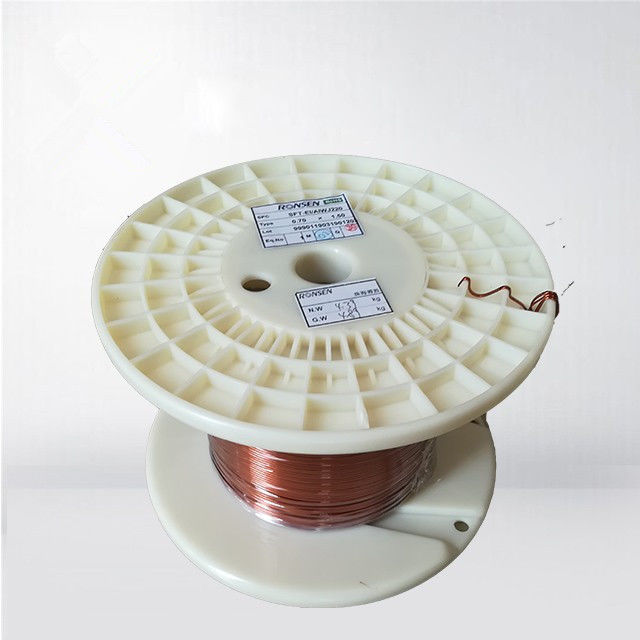

RECTANGULAR ENAMELED COPPER WIRE
Rectangular enameled copper wire is a core product in every day products and modern infrastructure, and we offer a complete range of copper wire for all kinds of applications. Round and rectangular enameled copper wire Besides the wide standard range we offer customer specific solutions, tailor-made to suit every possible needs. Whether standard or special, all our winding wire is manufactured in a high-precision process using state-of-the-art technology and manned by dedicated professionals.
FEATURES AND BENEFITS
1) Excellent bending property
2) High flexibility of the enamel
3) Good resistance to abrasion
4) High mechanical property
5) Higher thermal property
6) Good resistance to refrigerant and freon
7) Suitable for windings that are subjected to constantly high temperature and mechanical stress
8) Good chemical resistance
9) Outstanding mechanical and chemical property
APPLICATION
1) 120 degree flat enameled wire for oil-immersed transformer
2) 130,155,180 degree flate enameled wire are widely used in all kinds of magnet coil
3) 200 degree flat enameled wire works constantly in high temperature
4) 240 degree flat enameled wire for magnet coils of aviation,military and marine appication
|
Parameter |
Class 130 |
Class 155 |
Class-180 |
Class-200 |
Class220 |
Class-240 |
|
Standard |
IEC60317-16 GB/T7095.7 |
60317-16 GB/T7095.3 |
60317-28 GB/T7095.4 |
MW 36 60317-29 BS6811 GB/T7095.6 |
MW 18 60317-18 GB/T7098.2 |
MW 20 60317-47 GB/T7095.5 |
|
Thermal Class |
130°C |
155°C |
180°C |
200°C |
120°C |
240°C |
|
Enamel Base Coat |
Polyester |
Modified Polyester |
Polyester-Imide |
Polyester-Imide |
Polyester-formal |
Polyimide |
|
Enamel Top Coat |
|
|
|
Polyester-Imide |
|
|
|
Range of insulation thickness |
IEC60317-0-2 G1,0.06-0.11mm G2,0.12-0.17mm |
|||||
|
Performance |
1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property |
1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property 5.Higher thermal property |
1.High thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance |
1.Excellent thermal resistance 2.Suitable for windings that are subjected to constantly high temperature and mechanical stress 3.Good chemical resistance 4.Good resistance to refrigerant and freon |
1.Excellent bending property 2.High flexibility of the enamel 3.Good resistance to abrasion 4.High mechanical property |
1.Excellent thermal resistance suitable for any electric equipments that are constantly exposed to high working temperature 2.Outstanding mechanical and chemical property 3.Good performance against radiation |
|
Application |
1.Dry and oil-immersed 2.Electrical equipment |
1.Dry and oil-immersed 2.Electrical equipment |
1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer |
1.Windings of high and low voltage DC/AC motor 2.Magnet coil 3.Dry and oil-immersed transformer 4.Automobile coil 5.Train coil |
1.Dry and oil-immersed transformer 2.Electrical equipment |
1.Windings with service temperature up to 220°C 2.Motor and generator for aviation and marine application 3.Nuclear industry 4.Windings requiring high reliability |
|
Heat shock |
155°C |
175°C |
200°C |
220°C |
155°C |
300°C |
