| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.3*0.15mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Product Name: | Transformer Using Rectangular Copper Wire | Width-Thickness Ratio: | 1:1.14 |
|---|---|---|---|
| Conductor Thickness: | 0.15mm | Conductor Width: | 0.3mm |
| Equivalent Round Wire Diameter: | 0.12~3.2mm | Certification: | IEC/NEMA/JIS/RoHS/ISO/UL |
| Insulation: | UEW/EIW/AIW | Self Bonding: | Option |
| Highlight: | square magnet wire,high voltage copper wire |
||

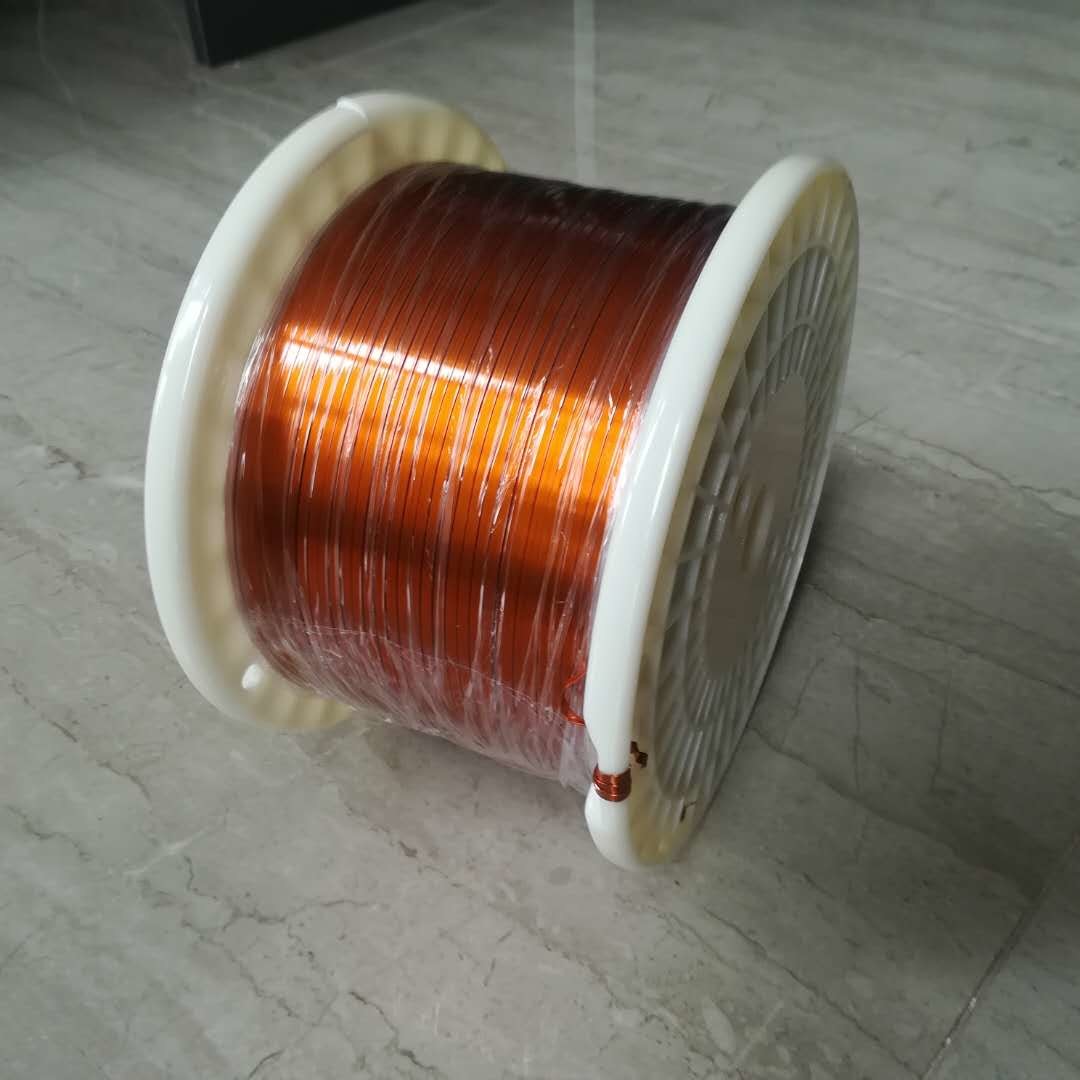

0.3 * 0.15MM RECTANGULAR ENAMELED COPPER WIRE FLAT MAGNET WIRE FOR WIRELESS CHARGER
Rectuangular or flat enameled copper wire consists two parts: width and thicness.When we describe the size, it likes thickness x width or width x thickness.Now transfomer start to use this because it can save space,and thermal conductivity is much better
FEATURES AND BENEFITS
Space: Electronics packaging continues to increase density. By nature of its shape, flat cable occupies roughly half the space of comparable round cable.
Weight: In addition to the reduction of unnecessary insulating, fillers and tapes, the composite flat-cable construction is so mechanically strong that it is not necessary to have large conductors for strength. The copper cross-section can thus be reduced to what’s required to carry the current load or to satisfy voltage-drop requirements.
Reduced Skewing Effects: Due to the conductors having the exact physical and electrical length, along with a continuous and consistent dielectric, time delays between signals within a given flat cable are minimized.
APPLCIATION
Notebook coil.
Coils of printer.
Motors of CD driver.
Transformer.
wireless charger
|
Insulation |
Thermal Class |
Solderability |
Self-bonding |
Size Range |
||
|
Width(mm) |
Thickness(mm) |
Ratio |
||||
|
AIWJ |
220℃ |
x |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
EI/AIWJ |
220℃ |
x |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
EI/AIWJ |
200℃ |
x |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
UEWJ |
180℃ |
0 |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
EIWJ |
180℃ |
x |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
SEIWJ |
180℃ |
0 |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
UEWJ |
155℃ |
0 |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
UEWJ |
130℃ |
0 |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
EI/SBWJ |
180℃ |
x |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
SEI/SBWJ |
180℃ |
0 |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
EI/AI/SBWJ |
220℃ |
x |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
AI/SBWJ |
220℃ |
x |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
UE/SBWJ |
180℃ |
0 |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
UE/SBWJ |
155℃ |
0 |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
|
UE/SBWJ |
130℃ |
0 |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
