Place of Origin: | China |
---|---|
Brand Name: | Rvyuan |
Certification: | ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 |
Model Number: | 1.0x2.0mm |
Minimum Order Quantity: | Different types with differet MOQ |
Price: | Negotiation |
Packaging Details: | Spool with carton |
Delivery Time: | 2-15 workding days |
Payment Terms: | Negotiation |
Supply Ability: | Satisfy your demand |
Product Name: | Self Bonding Flat Enameled Copper Wire | Thickness: | 0.16 |
---|---|---|---|
Width: | 0.82 | Certificate: | ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 |
Width To Thickess Ratio: | 1:5 | Color: | Nature |
Insulation: | UEW/EIW/AIW | Thermal Class: | 180-220 |
Material: | Copper | Standard: | JIS/IEC/NEMA |
Highlight: | rectangular magnet wire,square magnet wire |

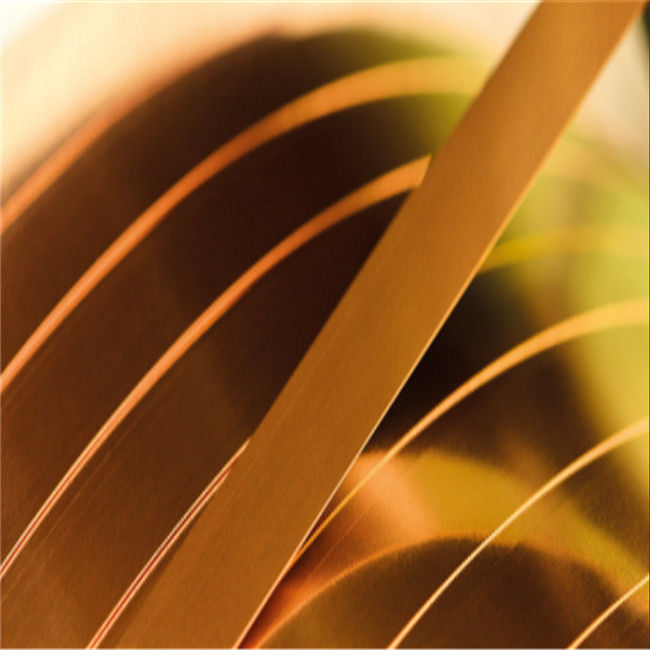

0.16 X 0.82MM SELF BONDIGN WIRE RECTANGULAR ENAMELED COPPER WIRE FOR WIRELESS TRANSFORMER
Class 180-220C self bonding rectangular copper wire that is widely used in wireless charger, In comparison with round wires, rectangular wires have the advantage of allowing more compact windings, thereby delivering both space and weight savings. The electrical efficiency is also better, which saves energy.
Different types of enamel with very good mechanical strength and bonding properties
Very consistent quality and dimension tolerances in line with industry standards
Wide range of dimensions, yarns and insulation builds available
Very thin grades for wind turbine generators
Improved mechanical strength, high-performance yarns and impregnation varnishes
Very high resistance to corona discharges for inverter applications
High-temperature class (original Pyre-ML® enamel used) with high- breakdown voltage
Soft wire for easy winding
CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
Executive standards: IEC, JIS and NEMA.
FEATURES AND BENEFITS
1. The insualtion of flat wire could be bondable per the requirement of customers
2.Flat enameled copper wire with larger volume efficient(as the comparion table),will decrease volume of coils
3.The flat enameled copper wire has a low frict coefficient and good winding property
4.The flat enameled copper wire has a wide length/thickness ration from 1 to 25.
APPLICATION
1.Auto Motor
2.Solar Energy
3.Transformer
4.Speaker
<
Insulation | Thermal Class | Solder ability | Self-bonding | Size Range | ||
Width(mm) | Thickness(mm) | Ratio | ||||
AIWJ | 220℃ | x | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
EI/AIWJ | 220℃ | x | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
EI/AIWJ | 200℃ | x | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
UEWJ | 180℃ | 0 | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
EIWJ | 180℃ | x | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
SEIWJ | 180℃ | 0 | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
UEWJ | 155℃ | 0 | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
UEWJ | 130℃ | 0 | x | 0.155--7.5 | 0.02-1.8 | 1.25 |
EI/SBWJ | 180℃ | x | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
SEI/SBWJ | 180℃ | 0 | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
EI/AI/SBWJ | 220℃ | x | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
AI/SBWJ | 220℃ | x | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
UE/SBWJ | 180℃ | 0 | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
UE/SBWJ | 155℃ | 0 | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
UE/SBWJ | 130℃ | 0 | 0 | 0.155--7.5 | 0.02-1.8 | 1.25 |
