Product Name: | Square Copper Wire | Width-Thickness Ratio: | 1:1.14 |
---|---|---|---|
Conductor Thickness: | 0.8 | Conductor Width: | 0.7mm |
Equivalent Round Wire Diameter: | 0.12~3.2mm | Certification: | IEC/NEMA/JIS/RoHS/ISO/UL |
Insulation: | AIW | Self Bonding: | Yes |
Packing: | HK Typy Bobbin | ||
Highlight: | rectangular magnet wire,high voltage copper wire |

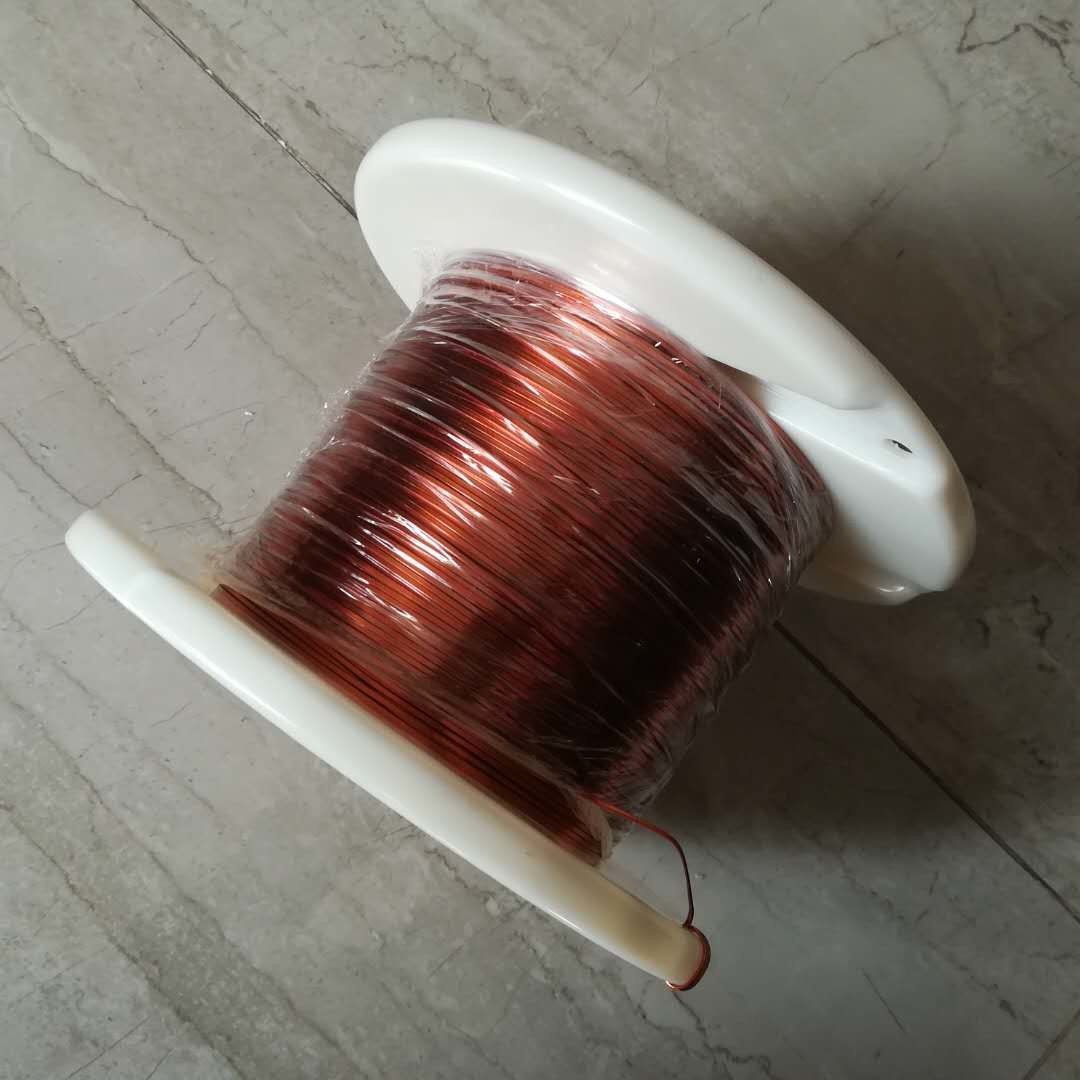

0.8 X 0.7MM CLASS 220 RECTANGULAR SELF BONDING WIRE ENAMELED COPPER WINDING WIRE FOR TRANSFORMER
Rectuangular or flat enameled copper wire consists two parts: width and thicness.When we describe the size, it likes thickness x width or width x thickness.Today most popular Notebook computers, wireless charger...and many other 3C products, are ever-possible designing to make its shape and structure become as light, thin, short and small as possible; while this development demanding the stricter characteristics of its coil, also resulting the conventional enamelled copper wire unfitted for the trend. This special demand for smaller-dimension and higher-efficiency makes the fiat-shape coil become the mainstream of the future, in response to this brand new trend, the Company successfully developed the "Enamelled Flat Copper Wire" for the market.
FEATURES AND BENEFITS
Space: Electronics packaging continues to increase density. By nature of its shape, flat cable occupies roughly half the space of comparable round cable.
Weight: In addition to the reduction of unnecessary insulating, fillers and tapes, the composite flat-cable construction is so mechanically strong that it is not necessary to have large conductors for strength. The copper cross-section can thus be reduced to what’s required to carry the current load or to satisfy voltage-drop requirements.
Reduced Skewing Effects: Due to the conductors having the exact physical and electrical length, along with a continuous and consistent dielectric, time delays between signals within a given flat cable are minimized.
APPLICATION
Notebook coil.
Coils of printer.
Motors of CD driver.
Transformer.
wireless charger
Insulation |
Thermal Class |
Solderability |
Self-bonding |
Size Range |
||
Width(mm) |
Thickness(mm) |
Ratio |
||||
AIWJ |
220℃ |
x |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
EI/AIWJ |
220℃ |
x |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
EI/AIWJ |
200℃ |
x |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
UEWJ |
180℃ |
0 |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
EIWJ |
180℃ |
x |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
SEIWJ |
180℃ |
0 |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
UEWJ |
155℃ |
0 |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
UEWJ |
130℃ |
0 |
x |
0.155--7.5 |
0.02-1.8 |
1.25 |
EI/SBWJ |
180℃ |
x |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
SEI/SBWJ |
180℃ |
0 |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
EI/AI/SBWJ |
220℃ |
x |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
AI/SBWJ |
220℃ |
x |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
UE/SBWJ |
180℃ |
0 |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
UE/SBWJ |
155℃ |
0 |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
UE/SBWJ |
130℃ |
0 |
0 |
0.155--7.5 |
0.02-1.8 |
1.25 |
