| Product Name: | Self Bonding Flat Wire | Thickness: | 0.04-1.8mm |
|---|---|---|---|
| Width: | 0.155-7.5mm | Width To Thickess Ratio: | 1:1.5-1:25 |
| Color: | Nature/BLACK | Insulation: | UEW/AIW/EIW |
| Thermal Class: | 155-220 | Delivery Time: | 2-15days |
| Highlight: | square magnet wire,high voltage copper wire |
||

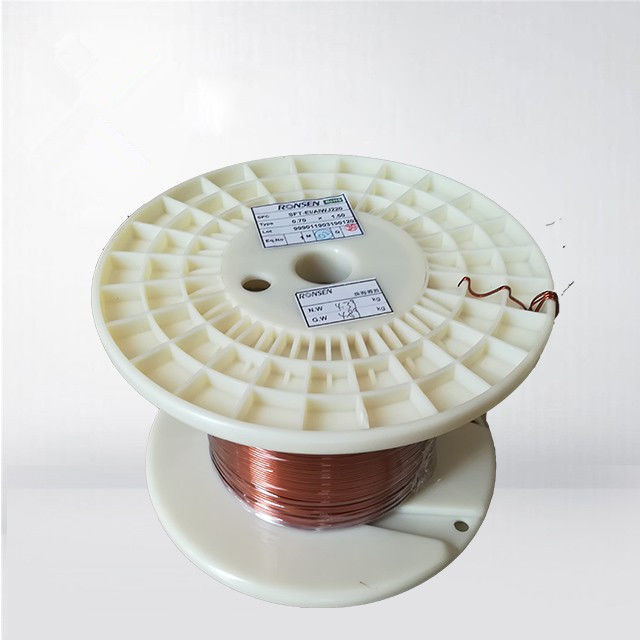

0.1*1.0mm Class 180 self bonding rectangular enamled copper wire
Today most popular Notebook computers, PDA...and many other 3C products, are ever-possible designing to make its shape and structure become as light, thin, short and small as possible; while this development demanding the stricter characteristics of its coil, also resulting the conventional enamelled round wire unfitted for the trend. This special demand for smaller-dimension and higher-efficiency makes the fiat-shape coil become the mainstream of the future, in response to this brand new trend, the Company successfully developed the "Enamelled Flat Wire" for the market
Different types of enamel with very good mechanical strength and bonding properties
Very consistent quality and dimension tolerances in line with industry standards
Wide range of dimensions, yarns and insulation builds available
Very thin grades for wind turbine generators
Improved mechanical strength, high-performance yarns and impregnation varnishes
Very high resistance to corona discharges for inverter applications
High-temperature class (original Pyre-ML® enamel used) with high- breakdown voltage
Soft wire for easy winding
Application:
1. Notebook coil.
2. Coils of printer.
3. Motors of CD driver.
4. Transformer.
5. Speaker
Specification:
|
Item |
Characteristics |
Standard |
Test Result |
||
|
1 |
Apperance |
Smooth Equality |
Smooth Equality |
||
|
2 |
Conductor Diameter |
Width |
1 |
±0.020 |
1.01 |
|
Thickness |
0.1 |
±0.009 |
0.105 |
||
|
3 |
Thickness of Coating layer |
Width |
≥0.007 |
0.026 |
|
|
Thickness |
≥0.030 |
0.034 |
|||
|
4 |
Thickness of Bonding layer |
Width |
≥0.006 |
0.008 |
|
|
Thickness |
≥0.006 |
0.006 |
|||
|
5 |
Overall Diameter |
Width |
≤1.045 |
1.044 |
|
|
Thickness |
≤0.150 |
0.145 |
|||
|
6 |
Pinhole |
≤3hole/m |
0 |
||
|
7 |
Elongation |
≥30 % |
35% |
||
|
8 |
Flexibility and Adherence |
No crack |
No crack |
||
|
9 |
Conductor Resistance (Ω/km at 20℃) |
≤197.26 |
174.32 |
||
|
10 |
Breakdown Voltage |
≥0.7KV |
1.5KV |
||
|
11 |
Heat shock |
No Crack |
No Crack |
||
|
12 |
Bond Strengh(g) |
>100 |
160 |
||
|
|
Conclution |
|
Pass |
||
