| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 0.012 - 0.8mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | 200 Ton/Tons per Month |
| Product Name: | Micro Electronic Used Copper Wire | Size Range: | 0.012-0.8mm |
|---|---|---|---|
| Stock: | Available | Color: | Red Blue Grenn |
| Package: | Plastic Spool | ||
| Highlight: | magnetic coil wire,self bonding magnet wire |
||

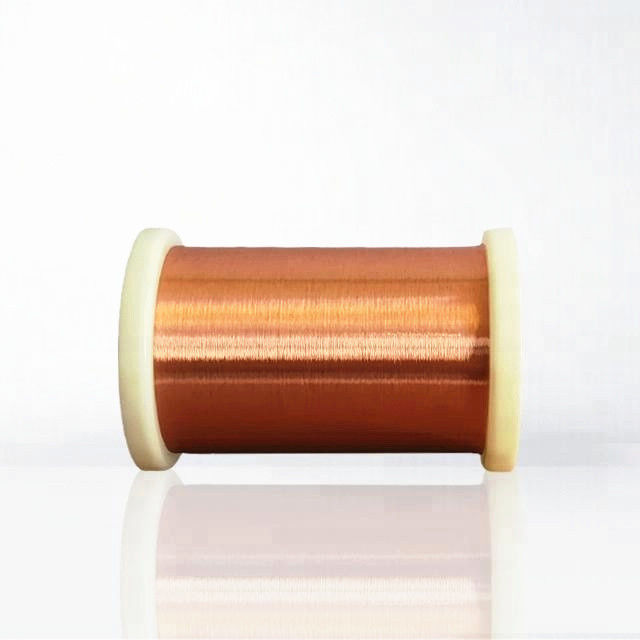

MICRO ELECTRONIC ULTRA FINE MAGNET WIRE 0.012-0.8MM FOR DRY TYPE TRANSFORMER
We are one of the pioneers in producing ultra fine enameled wires below 0.03mm in China. Our R&D team has 20 years of market experience. we have achieved the goal of "zero pinholes after stretching for ten years. In 2019, our finest diameter is 0.011mm, and mass production has been achieved. When the displays return the transformer industry, we are the No.a Chinese brand with a share of cake. We rival the internationally renowned enameled wire brands for production, technoloy, raw materials. We surpass them in terms of "service, quick response"; 30% lower price is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Sumsung...
ENAMELLED COPPER WIRE & ENAMELED ALUMINIUM WIRE is a fundamental part of a winding in every electrical machine or apparatus. Compared to fibrous insulations, enamelled copper & aluminium wire offers a favourable space saving factor together with a high level of breakdown voltage. The main application of Enamelled Copper Wire & Enamelled Aluminium wire is in winding of Motor and Transformers.Enamelled Aluminium Wire or Enameled Copper Wire is a wire coated with a thin layer of enamel (varnish) insulation to prevent the wire surfaces from being in a short circuit when wound into coils. Magnetic flux is created when current flows through the coil. Aluminum Enameled Wire and Copper Enamelled Winding Wire are used mainly in the construction of motors, electromagnets, transformers and inductors. For ease of manufacturing inductive components like transformers and inductors, most of these wires can be soldered.
APPLICATION
Dry type transformers ( For power distribution, Vehicles & etc. )
Transformer for measuring instrument
For power generation : Coil for electromagnetic switches, solenoid coil, Coil for lighting fixtures
Coil-motor ( Class H )
SPOOL
BICONICAL TYPE
CYLINDRICAL TYPE
TAPERED TYPE
SPECIFICATION
|
Nominal Diameter mm |
Tolerance |
Min. Increase of Diameter |
Max. Overall Diameter |
Breakdown Voltage |
|
Elongation |
Pin Hole |
Electrical Resistance |
|
|
|
mm |
|
|
≥ V |
|
≥% |
≤Default/5m |
Ω/km (20℃) |
|
|
|
|
|
|
Mandrel Method |
Twisted Method |
|
|
Min. |
Max. |
|
0.012 |
---- |
0.013 |
0.015 |
50.000 |
---- |
5.00 |
10.00 |
142.64 |
157.65 |
|
0.013 |
---- |
0.015 |
0.017 |
70.000 |
---- |
5.00 |
10.00 |
118.41 |
133.98 |
|
0.014 |
---- |
0.016 |
0.018 |
70.000 |
---- |
5.00 |
10.00 |
102.64 |
120.45 |
|
0.015 |
---- |
0.017 |
0.020 |
80.000 |
---- |
5.00 |
10.00 |
89.83 |
104.41 |
|
0.016 |
---- |
0.018 |
0.021 |
90.000 |
---- |
5.00 |
8.00 |
74.67 |
97.56 |
|
0.017 |
---- |
0.019 |
0.022 |
90.000 |
---- |
5.00 |
8.00 |
66.60 |
85.75 |
|
0.018 |
---- |
0.020 |
0.023 |
100.000 |
---- |
5.00 |
8.00 |
59.77 |
75.95 |
|
0.019 |
---- |
0.021 |
0.024 |
100.000 |
---- |
5.00 |
8.00 |
53.95 |
67.75 |
|
0.020 |
0.001 |
0.022 |
0.024 |
100.000 |
---- |
8.00 |
8.00 |
51.83 |
60.81 |
|
0.050 |
±0.002 |
0.007 |
0.062 |
400.000 |
1200.00 |
12.00 |
5.00 |
7981.00 |
9528.00 |
|
0.055 |
±0.002 |
0.007 |
0.068 |
400.000 |
1200.00 |
12.00 |
5.00 |
6642.00 |
7815.00 |
|
0.060 |
±0.002 |
0.007 |
0.073 |
500.000 |
1200.00 |
14.00 |
5.00 |
5614.00 |
6526.00 |
|
0.065 |
±0.002 |
0.007 |
0.078 |
500.000 |
1200.00 |
14.00 |
5.00 |
4807.00 |
5531.00 |
|
0.070 |
±0.002 |
0.007 |
0.083 |
500.000 |
1200.00 |
15.00 |
5.00 |
4163.00 |
4747.00 |
|
0.075 |
±0.002 |
0.007 |
0.088 |
550.000 |
1200.00 |
15.00 |
5.00 |
3640.00 |
4119.00 |
|
0.080 |
±0.002 |
0.008 |
0.094 |
550.000 |
1200.00 |
16.00 |
5.00 |
3209.00 |
3608.00 |
