| Product Name: | 40 AWG 0.08mm Enameled Wire Winding Insulated Solid | Thermal Rating: | 155/180 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.08mm |
| Conductor Material: | Copper | Key Word: | 40 AWG 0.08mm Enameled Wire Winding Insulated Solid |
| Type: | 40 AWG 0.08mm Enameled Wire Winding Insulated Solid |

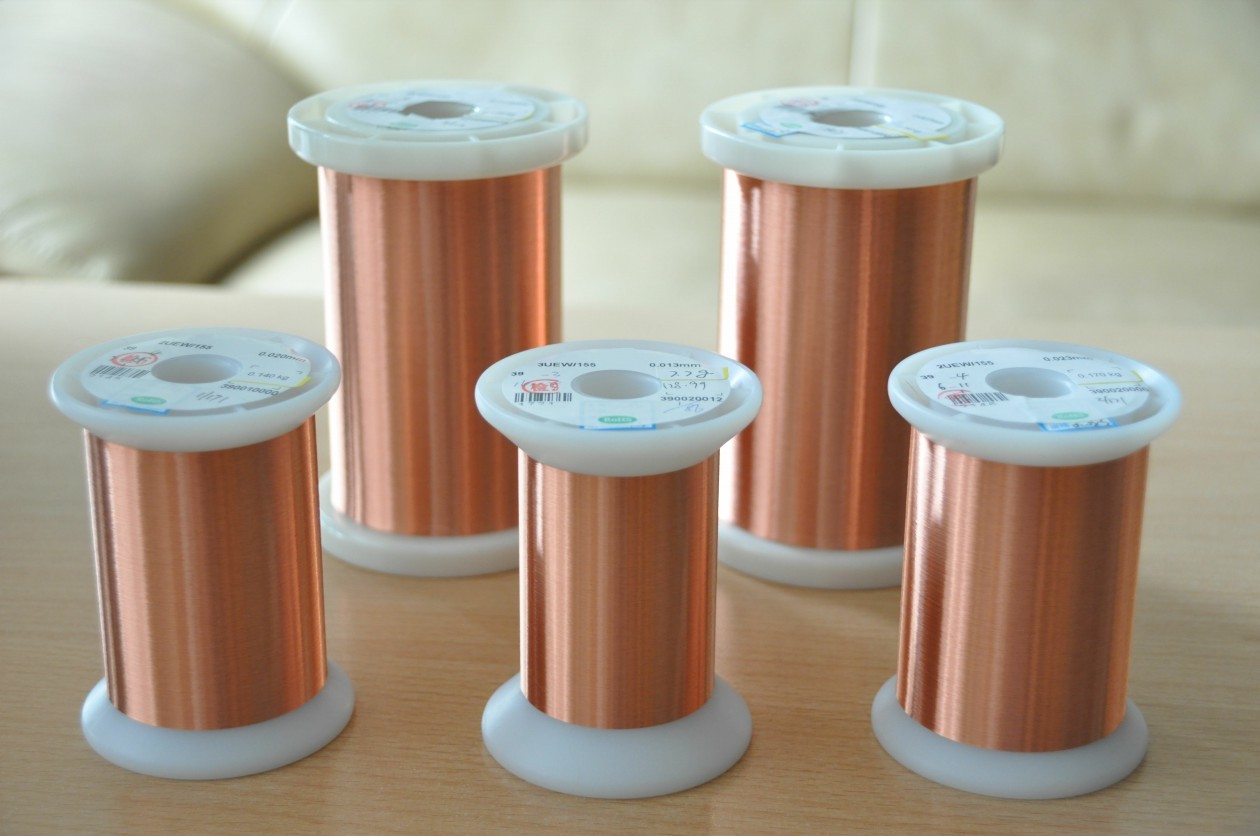

40 AWG 0.08mm Enameled Wire Winding Insulated Solid
Like other wire, magnet wire is classified by diameter (AWG number, SWG or millimeters) or area (square millimeters), temperature class, and insulation class.
types: Grade 1, Grade 2 and Grade 3. Higher grades have thicker insulation and thus higher breakdown voltages.
The temperature class indicates the temperature of the wire at which it has a 20,000 hour service life. At lower temperatures the service life of the wire is longer (about a factor of two for every 10 °C lower temperature). Common temperature classes are 105 °C (221 °F), 130 °C (266 °F), 155 °C (311 °F), 180 °C (356 °F) and 220 °C (428 °F).
|
Item
|
2UEW155 40 AWG 0.08mm Motor Winding Insulated Copper Magnet Wire Solid
|
| Key word | 2UEW155 40 AWG 0.08mm Motor Winding Insulated Copper Magnet Wire Solid |
|
Coating
|
Polyurethane
|
|
Thermal grade
|
155
|
|
Characteristics
|
Technical requests
|
Test Results
|
|
|
Sample 1
|
Sample 2
|
||
|
Surface
|
Good
|
OK
|
OK
|
|
Bare Wire Diameter
|
0.080±0.002
|
0.45
|
0.45
|
|
Coating Thickness
|
≥ 0.008 mm
|
0.011
|
0.012
|
|
Overall Diameter
|
≤ 0.094 mm
|
0.091
|
0.092
|
|
Conductor Resistance
|
≤ 3.608 Ω/m
|
3.456
|
3.443
|
|
Elongation
|
≥ 16 %
|
19
|
19
|
|
Breakdown Voltage
|
≥ 425 V
|
1578
|
1496
|
|
Pinhole Test
|
≤ 5 holes/5m
|
0
|
0
|
|
Continuity
|
≤ 40 holes/30m
|
0
|
0
|
|
Test Items
|
Technical Requests
|
Results
|
|
|
Adhesive
|
Coating layer is good
|
OK
|
|
|
Cut-through
|
200℃ 2minsno breakdown
|
OK
|
|
|
Heat Shock
|
175±5℃/30minno crack
|
OK
|
|
|
Solder Ability
|
390± 5℃ 2SecNo blister, no expansion, no shed
|
OK
|
|
