| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 44 AWG Gauge 0.050mm Copper Winding Enamelled Wire Magnet Copper Wire For Motor | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.05mm |
| Conductor Material: | Copper | Key Word: | 44 AWG Gauge 0.050mm Copper Winding Enamelled Wire Magnet Copper Wire For Motor |
| Type: | 44 AWG Gauge 0.050mm Copper Winding Enamelled Wire Magnet Copper Wire For Motor |

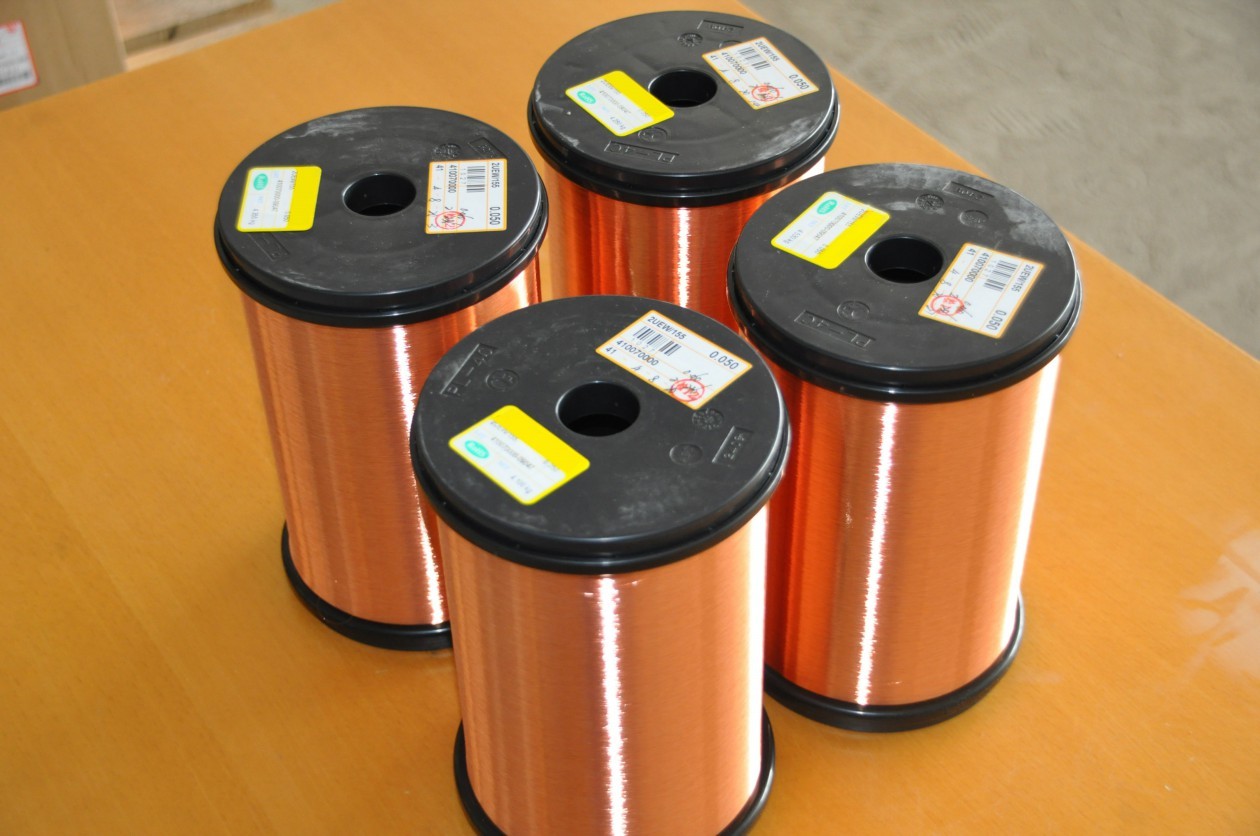

44 AWG Gauge 0.050mm Copper Winding Enamelled Wire Magnet Copper Wire for Motor
Our enameled copper wire, especially weldable UEW and ultra-fine enameled copper wire, represents the pinnacle of quality and performance in the enameled wire market. Committed to excellence and focused on customer satisfaction, we are proud to provide products that not only meet but exceed industry standards. Trust us to provide the enameled wire solutions you need for your precision applications and experience the difference high-quality materials can make in your projects. Whether you are in the automotive, aerospace or electronics industries, our enameled wires will provide the reliability and performance you need.
|
Test Items |
Requirements |
Test Data | |||
| 1st Sample | 2nd Sample | 3rd Sample | |||
| Appearance | Smooth & Clean | OK | OK | OK | |
| Conductor Diameter | 0.05mm ± | 0.002mm | 0.050 | 0.050 | 0.050 |
| Thickness of Insulation | ≥0.005mm | 0.0080 | 0.0080 | 0.0080 | |
| Overall Diameter | ≤ 0.006 mm | 0.058 | 0.058 | 0.058 | |
| DC Resistance | ≤ 9.528 Ω/m | 8.753 | 8.713 | 8.723 | |
| Elongation | ≥ 12 % | 20 | 20 | 21 | |
| Breakdown Voltage | ≥275V | 863 | 747 | 832 | |
| Pin Hole | ≤ 8 faults/5m | 0 | 0 | 0 | |
| Adherence | No cracks visible | OK | OK | OK | |
| Cut-through | 230℃ 2min No breakdown | OK | OK | OK | |
| Heat Shock | 200±5℃/30min No cracks | OK | OK | OK | |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK | |
| Insulation Continuity | / | 0 | 0 | 0 | |
|
Name |
EPolyurethane Class 155 Magnet Wire Enamel Winding Wire Solderable |
|
Key word |
Polyurethane Class 155 Magnet Wire Enamel Winding Wire Solderable |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.05mm |
