| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Polyurethane Class 155 Magnet Wire Enamel Winding Wire Solderable | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.05mm |
| Conductor Material: | Copper | Key Word: | Polyurethane Class 155 Magnet Wire Enamel Winding Wire Solderable |
| Type: | Polyurethane Class 155 Magnet Wire Enamel Winding Wire Solderable |

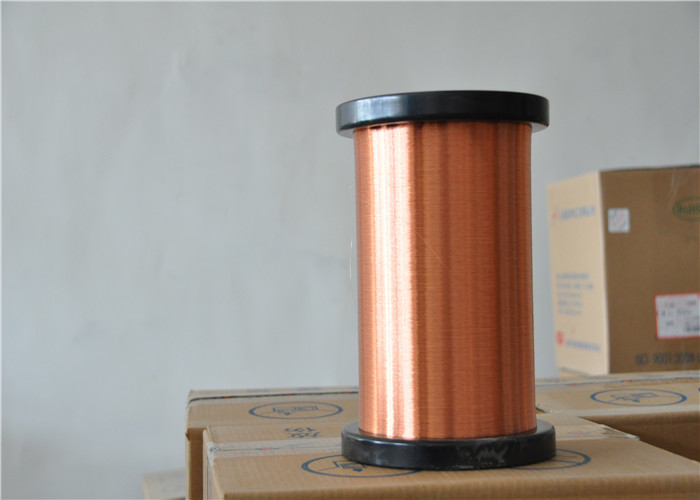

Polyurethane Class 155 Magnet Wire Enamel Winding Wire Solderable
Customization is an important aspect of our service, allowing us to meet the specific needs of our customers. We understand that different applications may require unique dimensions and paint film specifications. Therefore, we offer a comprehensive customization service for magnet wire, ensuring that you receive the exact product that meets your project needs. Whether you require a specific diameter, insulation thickness, or color, our team is committed to providing a solution that matches your vision.
|
Test Items |
Requirements |
Test Data | |||
| 1st Sample | 2nd Sample | 3rd Sample | |||
| Appearance | Smooth & Clean | OK | OK | OK | |
| Conductor Diameter | 0.05mm ± | 0.002mm | 0.050 | 0.050 | 0.050 |
| Thickness of Insulation | ≥0.005mm | 0.0080 | 0.0080 | 0.0080 | |
| Overall Diameter | ≤ 0.006 mm | 0.058 | 0.058 | 0.058 | |
| DC Resistance | ≤ 9.528 Ω/m | 8.753 | 8.713 | 8.723 | |
| Elongation | ≥ 12 % | 20 | 20 | 21 | |
| Breakdown Voltage | ≥275V | 863 | 747 | 832 | |
| Pin Hole | ≤ 8 faults/5m | 0 | 0 | 0 | |
| Adherence | No cracks visible | OK | OK | OK | |
| Cut-through | 230℃ 2min No breakdown | OK | OK | OK | |
| Heat Shock | 200±5℃/30min No cracks | OK | OK | OK | |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK | |
| Insulation Continuity | / | 0 | 0 | 0 | |
|
Name |
EPolyurethane Class 155 Magnet Wire Enamel Winding Wire Solderable |
|
Key word |
Polyurethane Class 155 Magnet Wire Enamel Winding Wire Solderable |
|
Insulationh |
Enamel |
|
Thermal rating |
155 |
|
Diameter of the enameled copper wire |
0.05mm |
