| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.02mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | UEW/EIW/PIW Enamel Coated Copper Winding Wire For Relays / Transforme | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.15mm |
| Conductor Material: | Copper | Key Word: | UEW/EIW/PIW Enamel Coated Copper Winding Wire For Relays / Transforme |

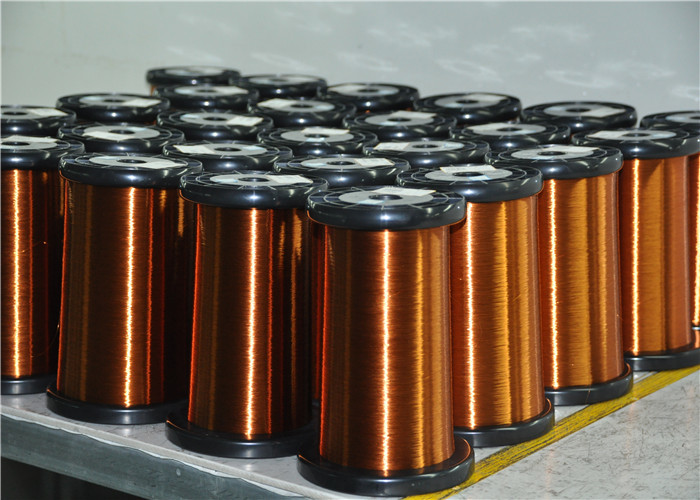

UEW/EIW/PIW Enamel Coated Copper Winding Wire For Relays / Transformer
In the world of electrical engineering and manufacturing, the choice of wire is critical to the performance and reliability of equipment. Enameled copper wire, also known as magnet wire, is a critical component in a variety of applications, from motors and transformers to precision instruments and electronic devices. Our company specializes in a wide range of enameled wires, including UEW (Ultra-Thin Enameled Wire), EIW (Enameled Insulated Wire), AIW (Aluminum Enameled Wire), and PIW (Polyimide Insulated Wire). Each type of wire is designed to meet specific needs, ensuring that our customers receive the highest quality products tailored to their requirements.
|
Test Items
|
Requirements
|
Test Data |
Result
|
||
| 1st Sample | 2nd Sample | 3rd Sample | |||
| Appearance | Smooth & Clean | OK | OK | OK | OK |
| Conductor Diameter | 0.150mm ±0.002mm | 0.150 | 0.150 | 0.150 | OK |
| Thickness of Insulation | ≥ 0.011mm | 0.015 | 0.015 | 0.014 | OK |
| Overall Diameter | ≤ 0.169mm | 0.165 | 0.165 | 0.164 | OK |
| DC Resistance | ≤1.002 Ω/m | 0.9569 | 0.9574 | 0.9586 | OK |
| Elongation | ≥ 19% | 25.1 | 26.8 | 24.6 | OK |
| Breakdown Voltage | ≥1700 V | 3784 | 3836 | 3995 | OK |
| Pin Hole | ≤ 5 faults/5m | 0 | 0 | 0 | OK |
| Adherence | No cracks visible | OK | OK | OK | OK |
| Cut-through | 200℃ 2min No breakdown | OK | OK | OK | OK |
| Heat Shock | 175±5℃/30min No cracks | OK | OK | OK | OK |
| Solderability | 390± 5℃ 2 Sec No slags | OK | OK | OK | OK |
