| Place of Origin: | China |
|---|---|
| Brand Name: | RVYUAN |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | copper Plates |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | T/T |
| Supply Ability: | 100kg/week |
| Features: | 99.9999% | Contuctor Type: | Solid |
|---|---|---|---|
| Material: | Copper | Shape: | Plates |
| Product Name: | Ultra Purity Copper Sheet Copper Bars 4N/5N/6N/7N | Key Word: | Ultra Purity Copper Sheet Copper Bars 4N/5N/6N/7N |
| Highlight: | 5N Copper Sheet,6N Copper Sheet,7N Copper Sheet |
||

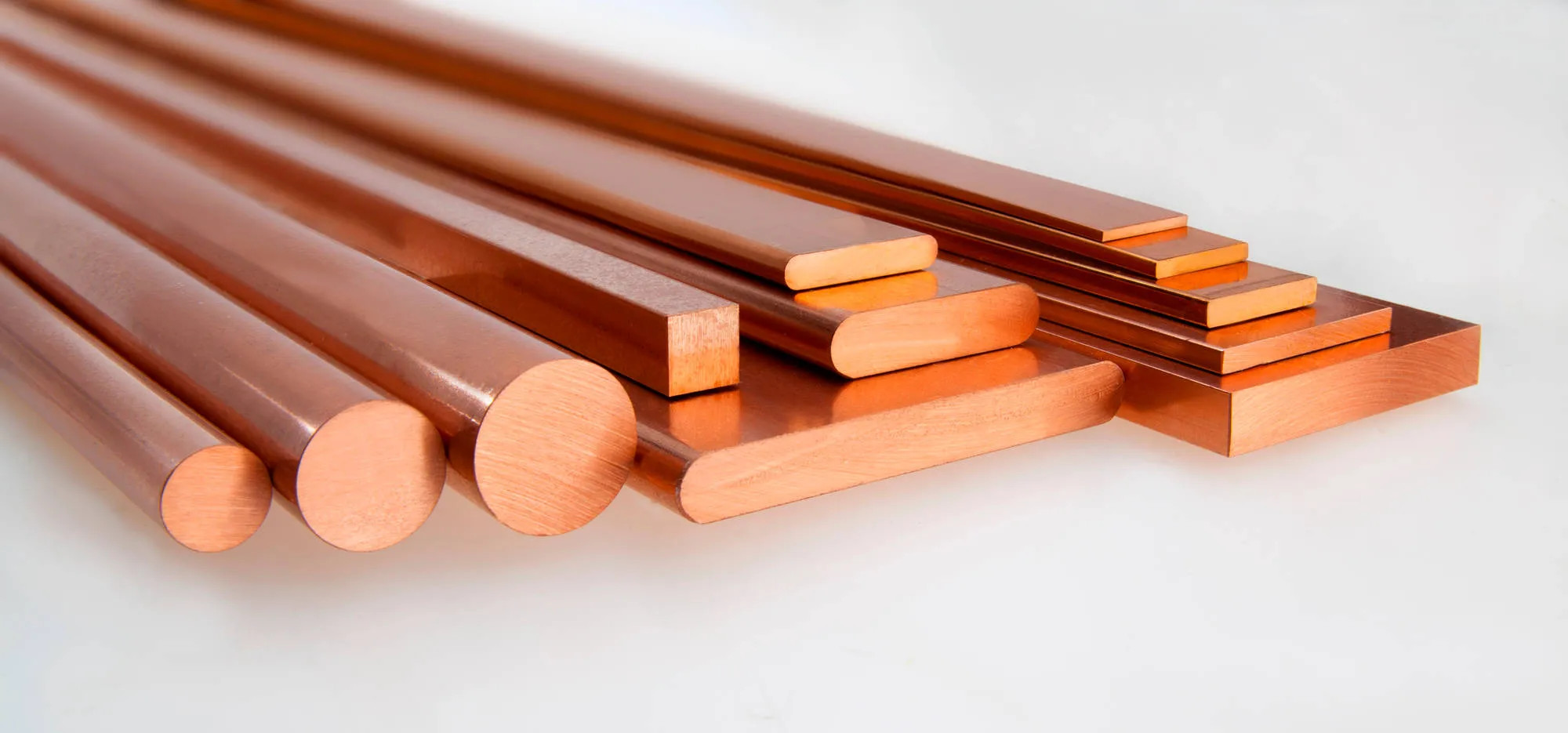

Ultra Purity Copper Sheet Copper Bars 4N/5N/6N/7N
To ensure that our high purity metal material products aligns with customer needs and supply timely, we maintain an inventory of grades C10100/C1010/TU00 Oxygen Free Copper (OFHC & OFE) in a variety of shapes such as sheet, plate, round rod, bar, ingot, and wire and other high purity metal materials like silver, gold, beryllium copper, nickle, chronium zirconium copper and alloys.
Discover more than just copper with Ruiyuan high purity metal materials. Send e-mail to us to find the ideal materials to elevate your projects and drive innovation in your industry.
|
Purtiy |
99.99%-99.99999% |
|
Shape |
Plates targets, column targets, step targets, custom made |
|
Copper electrolytic sheet |
Width:450mm, length: 500 mm, thickness: 3-5mm |
|
Rolled copper sheet |
Thickness>0.25mm, Width<1000mm |
|
Physical proerty |
|
|
|
|
Temper |
Tensile strength |
Extensibility |
Hardness |
|
O |
195-255 MPa |
>35% |
<60HV |
|
1/4H |
215-275 MPa |
25% |
50-75 HV |
|
1/2H |
245-315 MPa |
15% |
75-90 HV |
|
H |
275-345 MPa |
_ |
90-105HV |
|
EH |
>315MPa |
_ |
>100HV |
