| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.15mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 2UEW / 155 Enamel Coated Magnet Wire , 0.012 - 0.8mm Generator Copper Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.15mm |
| Conductor Material: | Copper | Key Word: | 2UEW / 155 Enamel Coated Magnet Wire , 0.012 - 0.8mm Generator Copper Wire |
| Highlight: | 0.8mm Enamel Coated Magnet Wire,Generator Copper Wire Magnet Wire,155 Enamel Coated Magnet Wire |
||

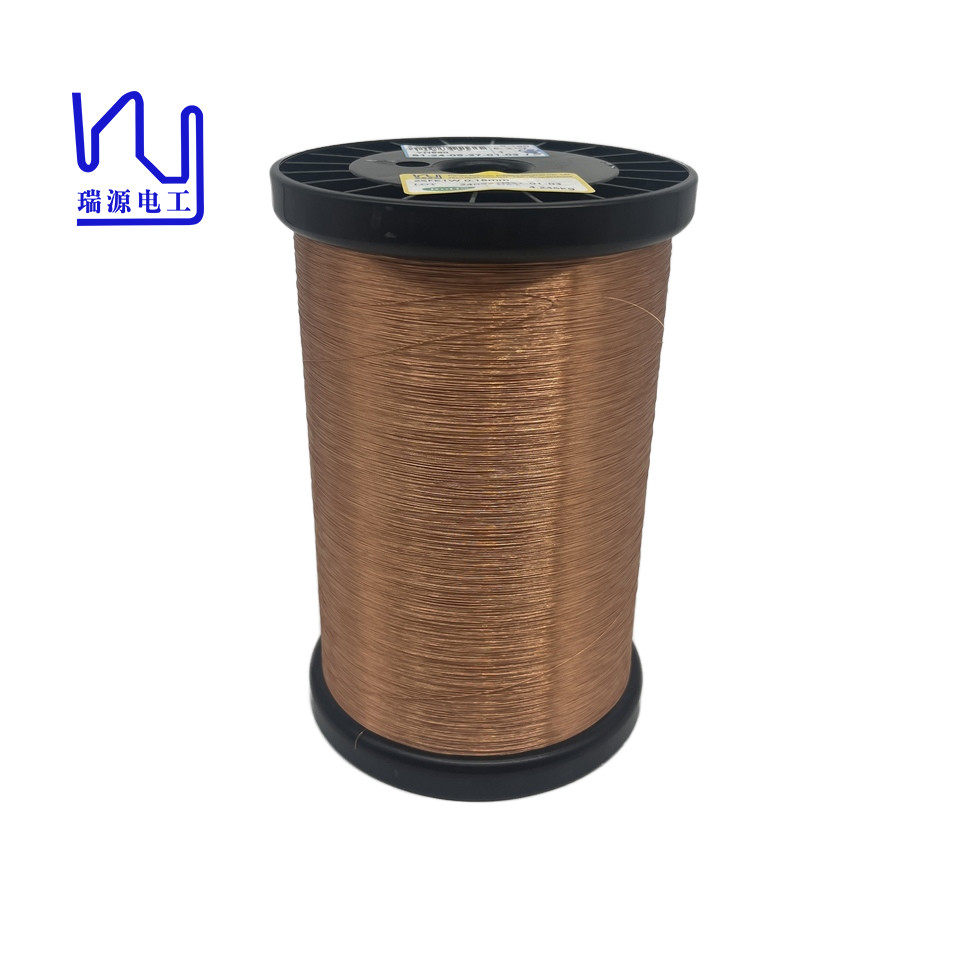

2UEW / 155 Enamel Coated Magnet Wire , 0.012 - 0.8mm Generator Copper Wire
ENAMELLED COPPER WIRE is a fundamental part of a winding in every electrical machine or apparatus. Compared to fibrous insulations, enamelled copper offers a favourable space saving factor together with a high level of breakdown voltage. The main application of Enamelled Copper Wire & is in winding of Motor and Transformers.
Features:
1. High conductivity
2. Shock resistance
3. Excellent durability
4. Superior strength
5. Rust resistant
|
Test Items
|
Requirements
|
Test Data |
Result
|
||
|
1st Sample |
2nd Sample |
3rd Sample |
|||
|
Appearance |
Smooth & Clean |
OK |
OK |
OK |
OK |
|
Conductor Diameter |
0.150mm ±0.002mm |
0.150 |
0.150 |
0.150 |
OK |
|
Thickness of Insulation |
≥ 0.011mm |
0.015 |
0.015 |
0.014 |
OK |
|
Overall Diameter |
≤ 0.169mm |
0.165 |
0.165 |
0.164 |
OK |
|
DC Resistance |
≤1.002 Ω/m |
0.9569 |
0.9574 |
0.9586 |
OK |
|
Elongation |
≥ 19% |
25.1 |
26.8 |
24.6 |
OK |
|
Breakdown Voltage |
≥1700 V |
3784 |
3836 |
3995 |
OK |
|
Pin Hole |
≤ 5 faults/5m |
0 |
0 |
0 |
OK |
|
Adherence |
No cracks visible |
OK |
OK |
OK |
OK |
|
Cut-through |
200℃ 2min No breakdown |
OK |
OK |
OK |
OK |
|
Heat Shock |
175±5℃/30min No cracks |
OK |
OK |
OK |
OK |
|
Solderability |
390± 5℃ 2 Sec No slags |
OK |
OK |
OK |
OK |
