| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.15mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Super Thin 0.15mm Enamelled Copper Wire Winding Wire | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.15mm |
| Conductor Material: | Copper | Key Word: | Super Thin 0.15mm Enamelled Copper Wire Winding Wire |
| Highlight: | Winding Enamelled Copper Wire,Super Thin Enamelled Copper Wire,0.15mm Enamelled Copper Wire |
||

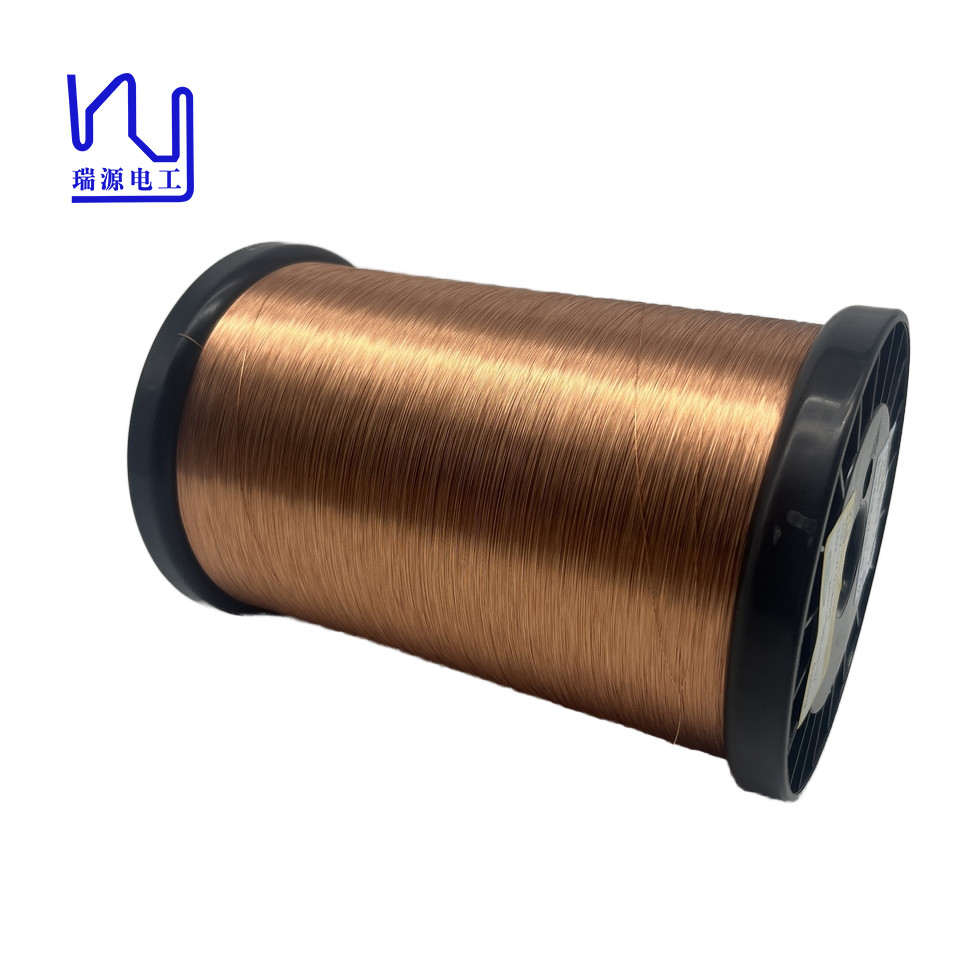

Super Thin 0.15mm Enamelled Copper Wire Winding Wire
Enameled copper wire has a wide range of applications across various industries. In industry, it is commonly used in the manufacture of transformers, solenoids and electric motors.Additionally, the wire’s solderability allows seamless integration into complex electrical systems.
In the audio field, enamelled copper wire plays a vital role in the production of high-fidelity speakers, headphones, and amplifiers. The cable’s excellent conductivity ensures audio signals are transmitted with minimal loss, resulting in superior sound quality.
|
Test Items
|
Requirements
|
Test Data |
Result
|
||
|
1st Sample |
2nd Sample |
3rd Sample |
|||
|
Appearance |
Smooth & Clean |
OK |
OK |
OK |
OK |
|
Conductor Diameter |
0.150mm ±0.002mm |
0.150 |
0.150 |
0.150 |
OK |
|
Thickness of Insulation |
≥ 0.011mm |
0.015 |
0.015 |
0.014 |
OK |
|
Overall Diameter |
≤ 0.169mm |
0.165 |
0.165 |
0.164 |
OK |
|
DC Resistance |
≤1.002 Ω/m |
0.9569 |
0.9574 |
0.9586 |
OK |
|
Elongation |
≥ 19% |
25.1 |
26.8 |
24.6 |
OK |
|
Breakdown Voltage |
≥1700 V |
3784 |
3836 |
3995 |
OK |
|
Pin Hole |
≤ 5 faults/5m |
0 |
0 |
0 |
OK |
|
Adherence |
No cracks visible |
OK |
OK |
OK |
OK |
|
Cut-through |
200℃ 2min No breakdown |
OK |
OK |
OK |
OK |
|
Heat Shock |
175±5℃/30min No cracks |
OK |
OK |
OK |
OK |
|
Solderability |
390± 5℃ 2 Sec No slags |
OK |
OK |
OK |
OK |
