| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.02mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom Factory Price Enamelled Copper Wire For Relays | Thermal Rating: | 155 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.02mm |
| Conductor Material: | Copper | Key Word: | Custom Factory Price Enamelled Copper Wire For Relays |
| Highlight: | Custom Factory Price Enamelled Copper Wire,Relays Enamelled Copper Wire,Enamelled Copper Wire For Relays |
||

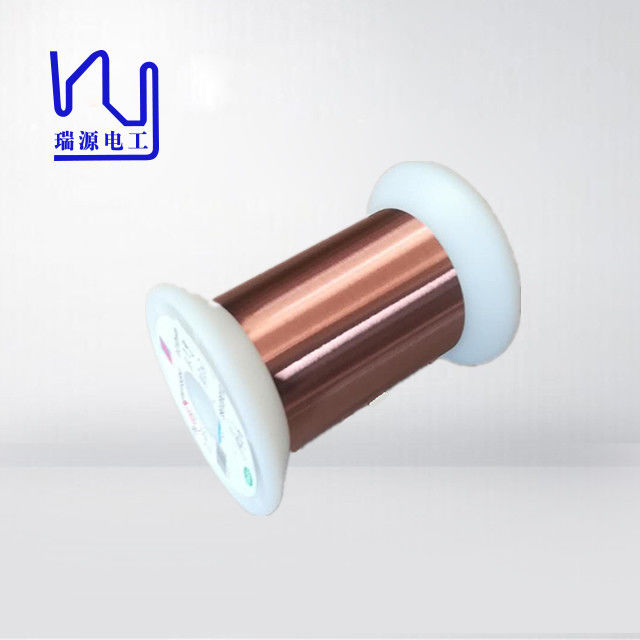

Custom Factory Price Enamelled Copper Wire For Relays
General purpose enameled wire (ordinary wire): Mainly used for winding wires in general motors, electrical appliances, instruments, transformers, etc., such as polyester enameled wire and modified polyester enameled wire;
Heat-resistant enameled wire: Mainly used for winding wires in working places such as motors, electrical appliances, instruments, transformers, etc., which work in a temperature environment of 180℃ and above, such as polyester imide enameled wire, polyimide enameled wire, polyester enameled wire, polyester imide /Polyamideimide composite enameled wire;
Special purpose enameled wire: refers to the winding wire that has certain quality characteristics and is used for specific occasions, such as: polyurethane enameled wire (direct welding), self-adhesive enameled wire.
|
2UEW155 0.02mm |
|||
| Characteristics | Technical requests | Test Results | |
| Sample1 | Sample 2 | ||
| Surface | Good | OK | OK |
| Bare Wire Diameter | 0.02±0.001 | 0.020 | 0.030 |
| Overall diameter | 0.022-0.024 | 0.0230 | 0.0230 |
| Elongation | ≥ 8% | 10 | 10 |
| Enamel continuity | ≤ 8hole/5m | 1 | 0 |
| Breakdown voltage | ≥130V | 212 | 247 |
| Electrical Resistance | ≤60.810Q /m | 56.812 | 56.403 |
| Adhesive | No crack | OK | |
| Heat Shock | 200±5 ℃/30min no crack | OK | |
| Solder Ability | 390℃±5C/2S Smooth | OK | |
