| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 16 AWG |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | 240°C High Temperature Enameled Copper Round Wire 16AWG | Insulation: | Polyimide |
|---|---|---|---|
| Size: | AWG 16 | Application: | Motor/Transformer |
| Thermal Grade: | 240 | Key Word: | 240°C High Temperature Enameled Copper Round Wire 16AWG |
| Highlight: | 240°C Enameled Copper Round Wire,High Temperature Enameled Copper Round Wire,16AWG Enameled Copper Round Wire |
||

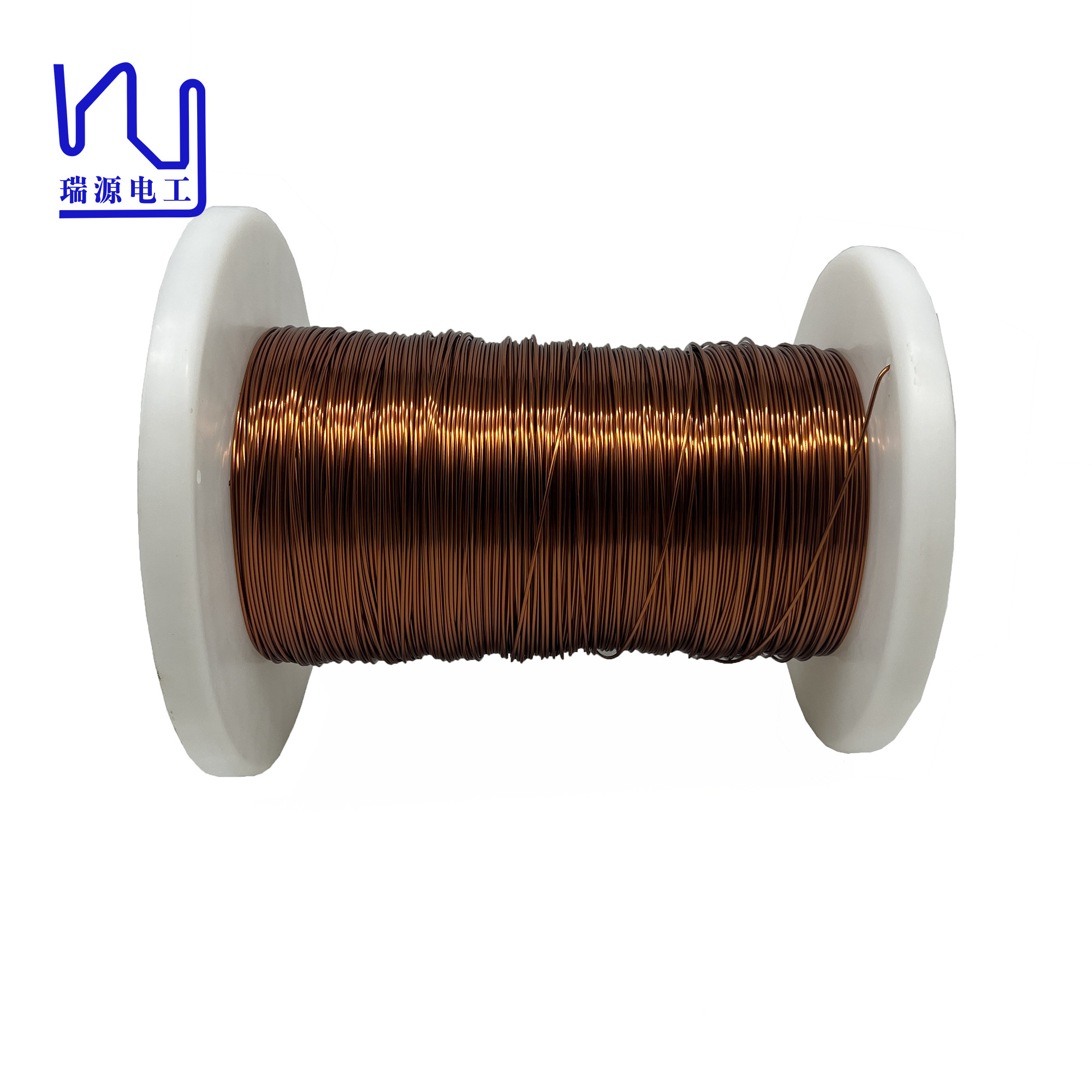

240°C High Temperature Enameled Copper Round Wire 16AWG
Polyimide Coated Magnet Wire consists of an aromatic polyimide film that combines not only thermal stability in the Class 240, but unmatched chemical and burnout resistances.
Polyimide Coated Magnet Wire is used in encapsulated windings and hermetically sealed components because of the excellent chemical resistance and low weight loss characteristics at elevated temperatures. It is resistant to unusual environments such as radiation and can be used in many electronic devices found in aerospace, nuclear, and other such applications. 240°C Polyimide Coated Magnet Wire - MW 16, (J-W-1177/15), IEC#60317-7
|
240°C High Temperature Enameled Copper Round Wire 16AWG |
|
|
Insulation build |
Heavy build |
|
Specification |
MW 16 (J-W-1177/15) IEC#60317-7 |
|
Size |
AWG 16/1.29mm |
|
Color |
Clear |
|
Operating temperature |
240°C |
