| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 16 AWG |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | PIW240°C 1.29mm High Temperature Enameled Copper Winding Wire | Insulation: | Polyimide |
|---|---|---|---|
| Size: | AWG 16 | Application: | Motor/Transformer |
| Thermal Grade: | 240 | Key Word: | PIW240°C 1.29mm High Temperature Enameled Copper Winding Wire |
| Highlight: | 1.29mm Enameled Copper Winding Wire,High Temperature Enameled Copper Winding Wire,PIW240°C Enameled Copper Winding Wire |
||

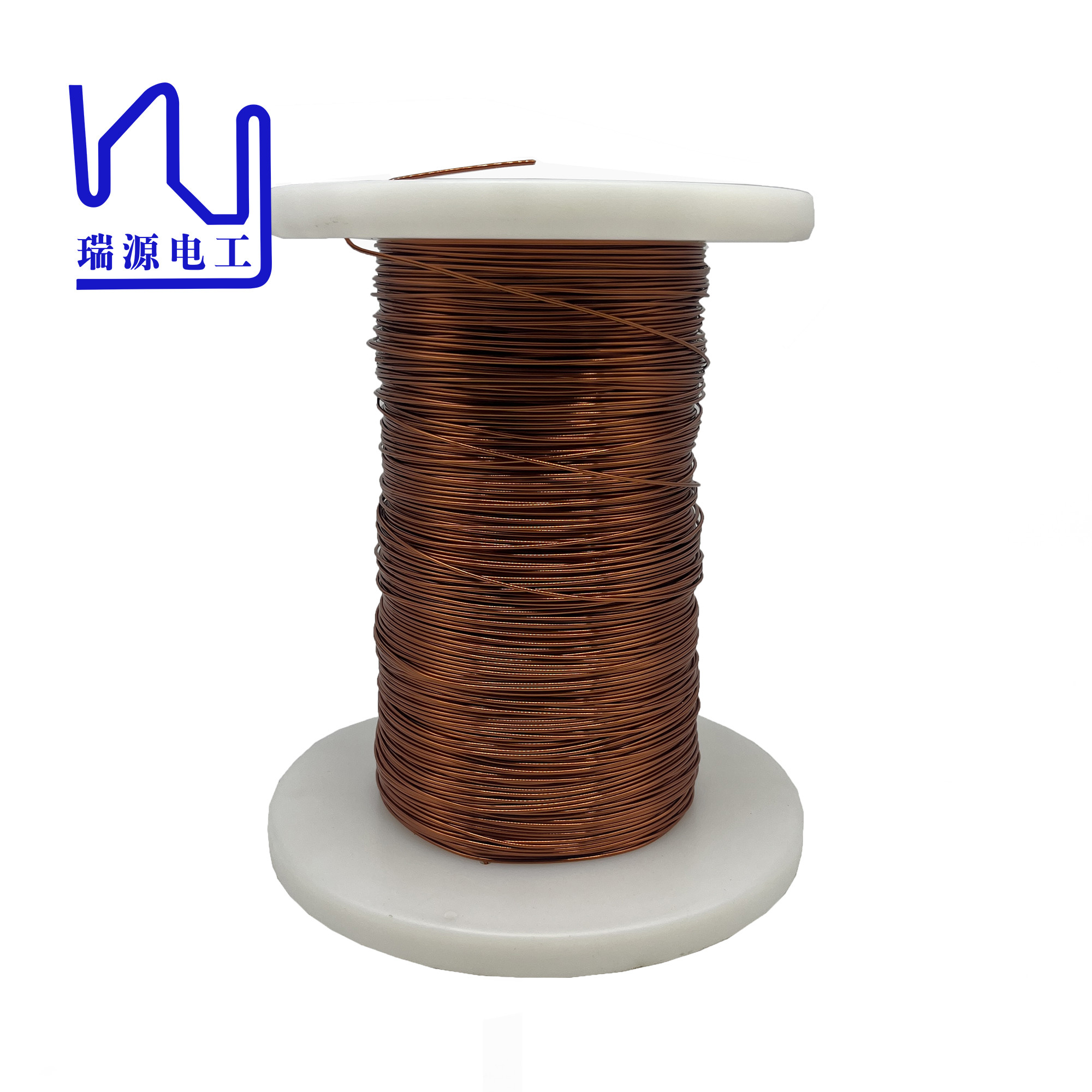

PIW240°C 1.29mm High Temperature Enameled Copper Winding Wire
In motor manufacturing, 240°C polyimide-coated enameled wire is an important component to ensure reliable, efficient operation. Its high temperature resistance and excellent chemical resistance make it ideal for use in various types of motors, including those used in aerospace and other critical applications.
The wire's low weight loss properties at high temperatures further enhance its suitability for demanding motor applications.
| AWG 16 PIW High temperature polyimide enameled copper wire | |
| Insulation build | Heavy build |
| Specification | MW 16 (J-W-1177/15) IEC#60317-7 |
| Size | AWG 16/1.29mm |
| Color | Clear |
| Operating temperature | 240°C |
