| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Diameter 0.04 - 0.30mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| No. Of Strands: | 7 | Key Word: | High Breakdown Voltage Hot Wind Self Adhesive Litz Wire With 0.100 Conductor Diameter |
|---|---|---|---|
| Pitch(mm): | 9.18±15% | Conductor Diameter: | 0.100±0.008 |
| Diameter: | 0.1mm | Appearance: | Smooth |
| Insulation: | Enamel | Breakdown Voltage: | >2000V |
| Highlight: | Hot Wind Litz Wire,0.100 Conductor Diameter Litz Wire,High Breakdown Voltage Litz Wire |
||

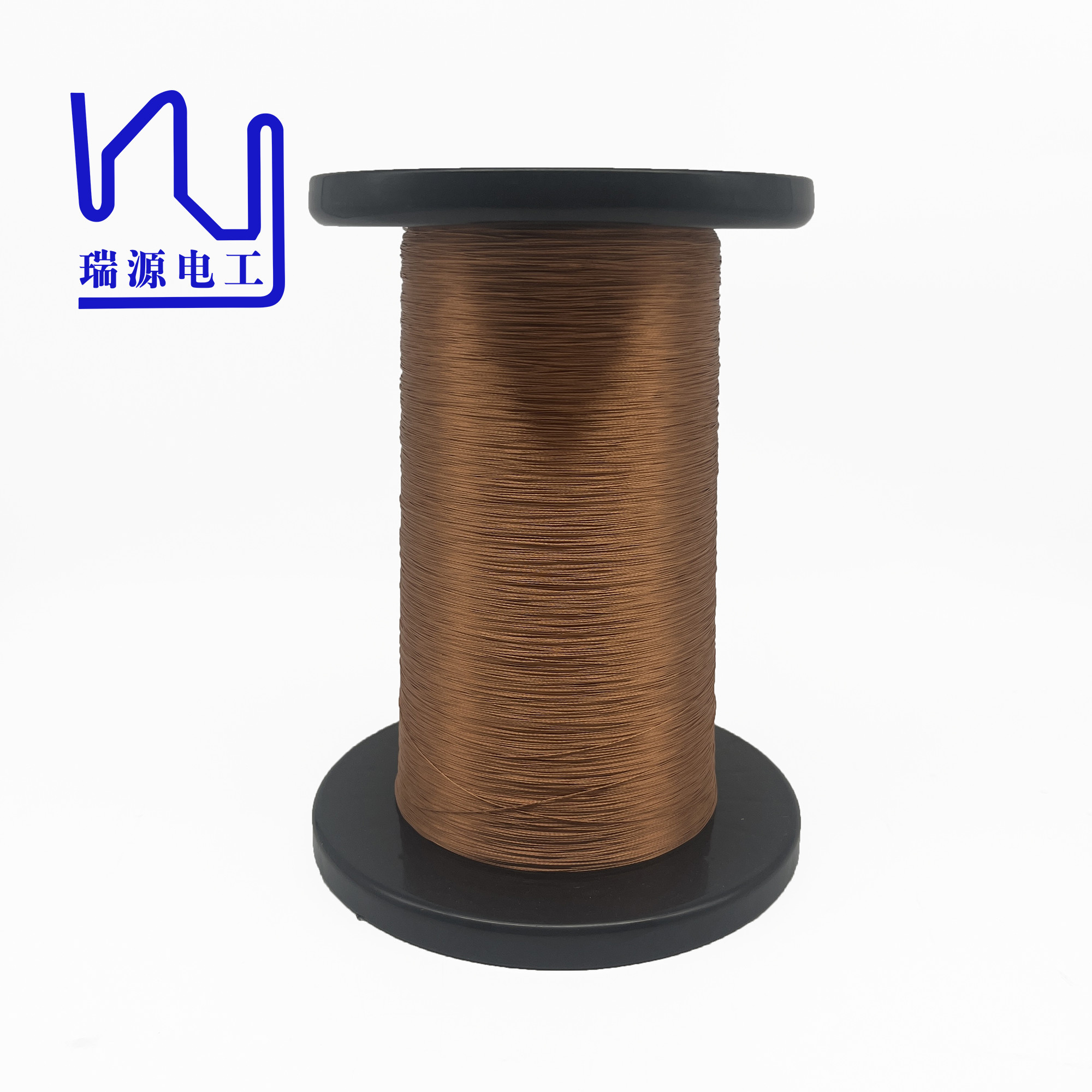

High Breakdown Voltage Hot Wind Self Adhesive Litz Wire with 0.100 Conductor Diameter
In addition to its superior bonding capabilities, our self-adhesive litz wire offers the inherent benefits of copper, including high conductivity and corrosion resistance. This ensures that the wire provides optimal performance over a long service life, even in challenging environments. The combination of these features makes our Litz wire an indispensable component in the design and manufacture of high-quality electrical and electronic systems.
Features:
Product Name: Copper Litz Wire
Diameter: 0.1mm
Breakdown voltage: >2000V
Conductor: Copper
Appearance: Smooth
Pinhole: <7
Self bonding stranded wire
Solvent self adhesive litz wire
Item | Standard | Test value | ||
Apperance | Smooth | OK | OK | OK |
Single wire outer diameter | 0.118-0.14 | 0.120 | 0.122 | 0.123 |
Conductor diameter | 0.100±0.008 | 0.10 | 0.10 | 0.10 |
Construction | 7/0.10 | 7/0.10 | 7/0.10 | 7/0.10 |
Stranding direction | S | S | S | S |
Pitch(mm) | 9.18±15% | 9.18 | 9.18 | 9.18 |
Pinhole | <7 | 0 | 1 | 0 |
Breakdown voltage | >2000V | 3900V | 3800V | 4000V |
