| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.15mm |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Manufacturer 0.05-0.7mm FIW Copper Wire | Thermal Rating: | 180 |
|---|---|---|---|
| Diameter: | 0.15mm | Conductor Material: | Copper |
| Key Word: | Manufacturer 0.05-0.7mm FIW Copper Wire | MOQ: | 20KG |
| Highlight: | 0.7mm FIW Copper Wire,Manufacturer FIW Copper Wire,0.05-0.7mm FIW Copper Wire |
||

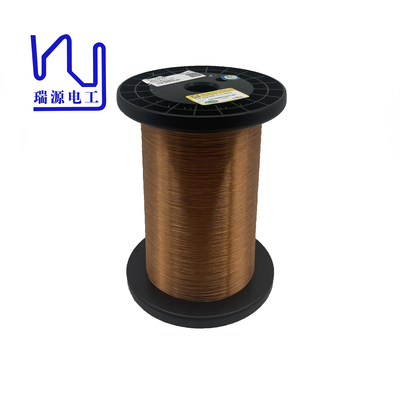

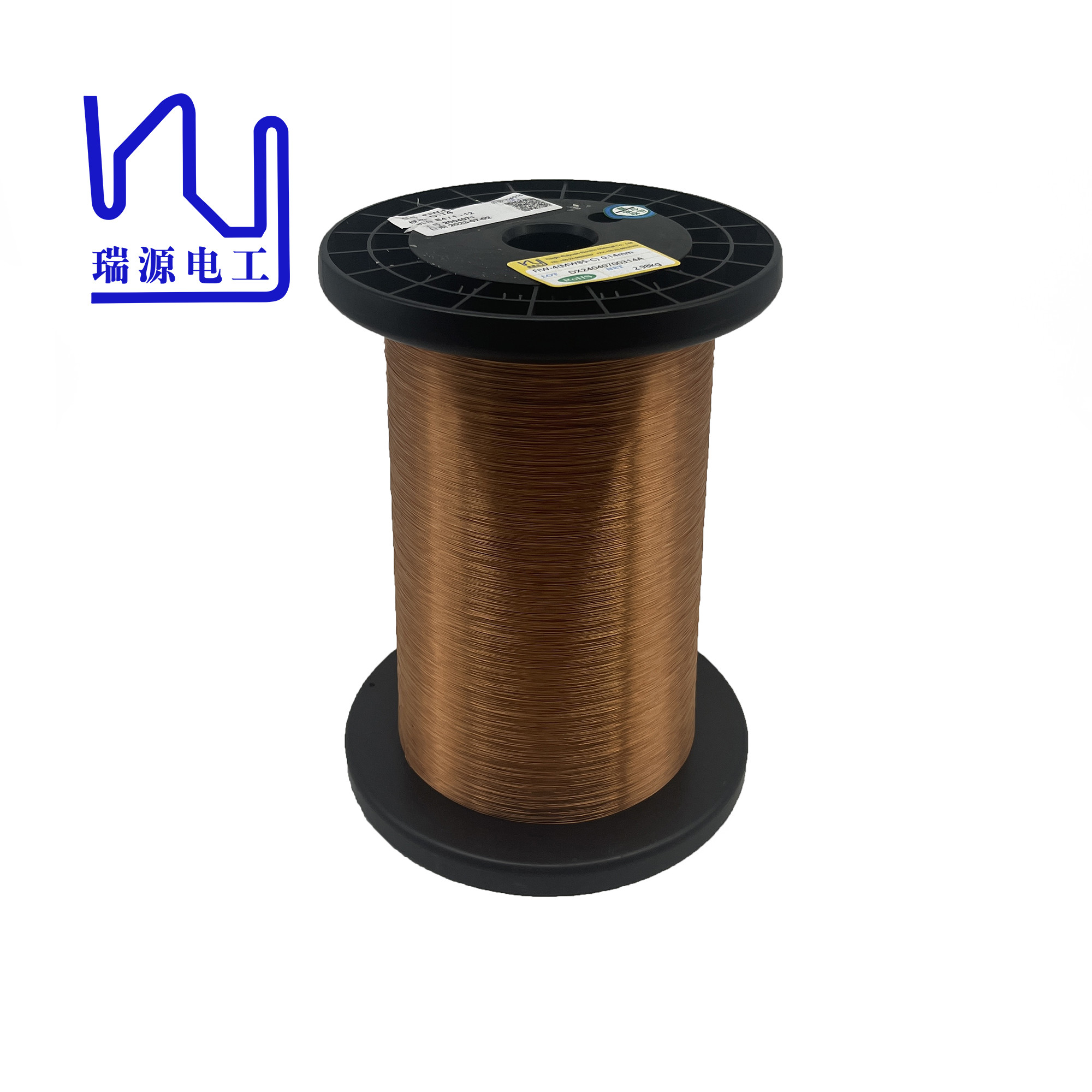

Manufacturer 0.05-0.7mm FIW Copper Wire
Fully insulated (FIW) zero-defect enamelled round copper wire is the wire with high thermal class, Zero-defect strengthened insulation and high voltage resistance compliance with IEC60317-56 / IEC60950U and
NEMA MW85-C. The wire can meet the requirements of miniaturized components, good winding performance and low cost, applied small transformer, electronic switch etc.
UL approvals
◆ OBMW2, according to UL 1446, ANSI MW 85-C.
◆ OBJT2,Thermal class F, Reinforced insulation, according to UL60950-1
◆(FIW3-FIW9, φ0.04mm to φ1.60mm).
|
Key word |
Manufacturer 0.05-0.7mm FIW Copper Wire |
| Nom.Diameter(mm) | Min. Breakdown voltage (V) 20℃ | |||||
| FIW3 | FIW4 | FIW5 | FIW6 | FIW7 | FIW8 | |
| 0.100 | 2106 | 2673 | 3969 | 5265 | 6561 | 7857 |
| 0.120 | 2280 | 2964 | 4332 | 5700 | 7068 | 8436 |
| 0.140 | 2432 | 3192 | 4712 | 6232 | 7752 | 9272 |
| 0.160 | 2660 | 3496 | 5168 | 6840 | 8512 | 10184 |
| 0.180 | 2888 | 3800 | 5624 | 7448 | 9272 | 11096 |
| 0.200 | 3040 | 4028 | 5928 | 7828 | 9728 | 11628 |
| 0.250 | 3648 | 4788 | 7068 | 9348 | 11628 | 13908 |
| 0.300 | 4028 | 5320 | 7676 | 10032 | 12388 | 14744 |
| 0.400 | 4200 | 5530 | 7700 | 9870 | 12040 | 14210 |
| 0.450 | 4480 | 5880 | 8050 | 10220 | 12390 | 14560 |
| 0.475 | 4690 | 6160 | 9030 | 11900 | 14770 | 17640 |
| 0.500 | 4690 | 6160 | 9030 | 11900 | 14770 | |
| 0.560 | 3763 | 4982 | 7155 | 9328 | 11501 | - |
| 0.600 | 3975 | 5247 | 7420 | 9593 | 11766 | - |
| 0.710 | 4240 | 5565 | 7738 | 9911 | 12084 | - |
