| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.15mm |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | 0.15mm FIW Copper Wire Fully Insulated Enameled Wire For High Voltage Transformer | Thermal Rating: | 180 |
|---|---|---|---|
| Diameter: | 0.15mm | Conductor Material: | Copper |
| Key Word: | 0.15mm FIW Copper Wire Fully Insulated Enameled Wire For High Voltage Transformer | MOQ: | 20KG |
| Highlight: | Fully Insulated FIW Copper Wire,High Voltage Transformer FIW Copper Wire,0.15mm FIW Copper Wire |
||

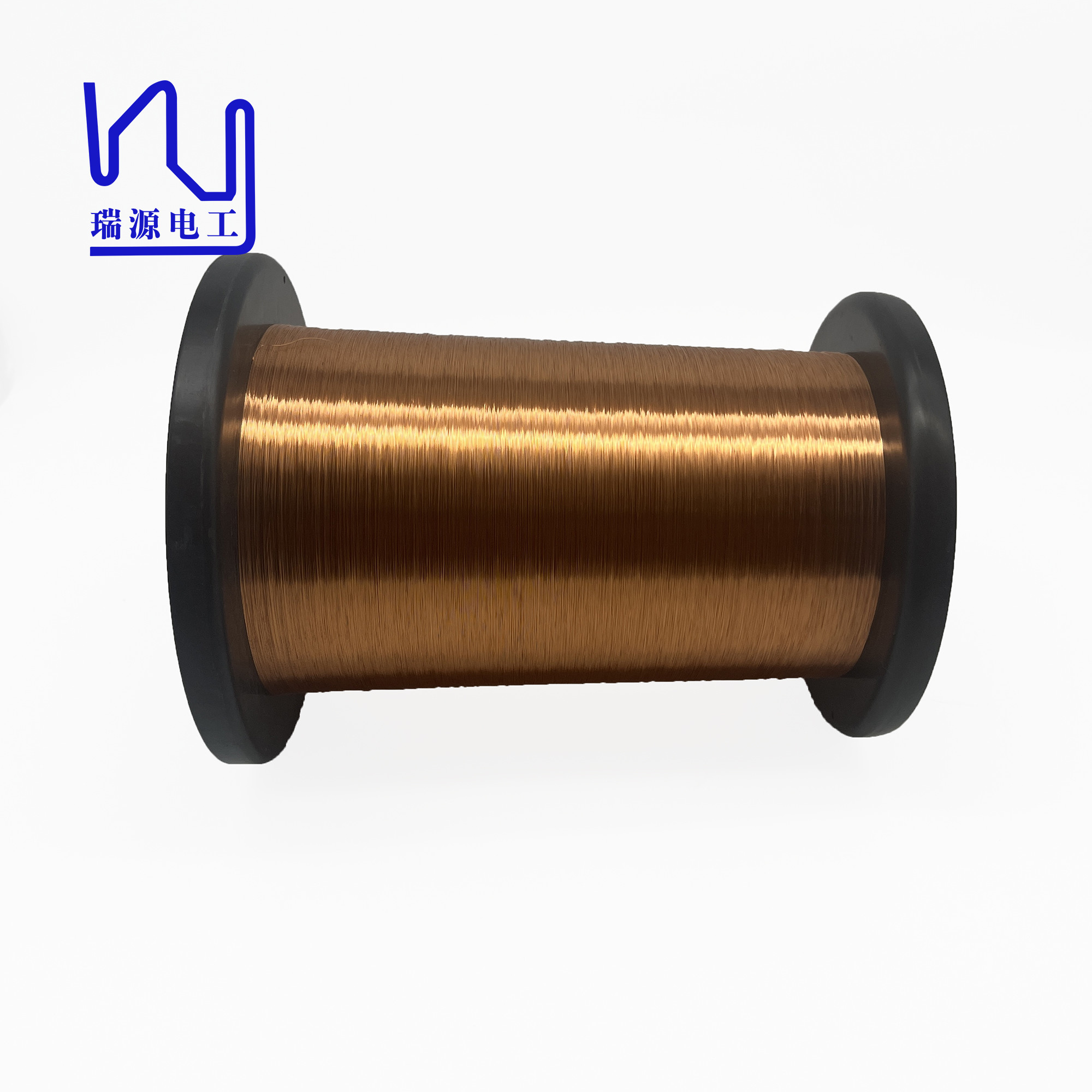

0.15mm FIW Copper Wire Fully Insulated Enameled Wire For High Voltage Transformer
This FIW4 wires are 0.15mm in diameter, pure copper conductor, and the temperature resistance rating of the FIW wire is 180 degrees. It is designed to meet the stringent requirements of high voltage applications. Its zero-defect reinforced insulation and high voltage resistance comply with IEC60317-56/IEC60950U and NEMA MW85-C, making it ideal for a variety of electronic applications.
|
Key word |
0.15mm FIW Copper Wire Fully Insulated Enameled Wire For High Voltage Transformer |
| Nom.Diameter(mm) | Min. Breakdown voltage (V) 20℃ | |||||
| FIW3 | FIW4 | FIW5 | FIW6 | FIW7 | FIW8 | |
| 0.100 | 2106 | 2673 | 3969 | 5265 | 6561 | 7857 |
| 0.120 | 2280 | 2964 | 4332 | 5700 | 7068 | 8436 |
| 0.140 | 2432 | 3192 | 4712 | 6232 | 7752 | 9272 |
| 0.160 | 2660 | 3496 | 5168 | 6840 | 8512 | 10184 |
| 0.180 | 2888 | 3800 | 5624 | 7448 | 9272 | 11096 |
| 0.200 | 3040 | 4028 | 5928 | 7828 | 9728 | 11628 |
| 0.250 | 3648 | 4788 | 7068 | 9348 | 11628 | 13908 |
| 0.300 | 4028 | 5320 | 7676 | 10032 | 12388 | 14744 |
| 0.400 | 4200 | 5530 | 7700 | 9870 | 12040 | 14210 |
| 0.450 | 4480 | 5880 | 8050 | 10220 | 12390 | 14560 |
| 0.475 | 4690 | 6160 | 9030 | 11900 | 14770 | 17640 |
| 0.500 | 4690 | 6160 | 9030 | 11900 | 14770 | |
| 0.560 | 3763 | 4982 | 7155 | 9328 | 11501 | - |
| 0.600 | 3975 | 5247 | 7420 | 9593 | 11766 | - |
| 0.710 | 4240 | 5565 | 7738 | 9911 | 12084 | - |
