| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | FIW |
| Minimum Order Quantity: | 20 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | High Voltage Fully Insulated Wire FIW4 0.14mm Soldering FIW Enameled Copper Wire | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | Enamel | Diameter: | 0.1mm-0.4mm |
| Conductor Material: | Copper | Key Word: | High Voltage Fully Insulated Wire FIW4 0.14mm Soldering FIW Enameled Copper Wire |
| Highlight: | 0.14mm fiw wire,Soldering fiw wire,0.14mm enamel insulated copper wire |
||

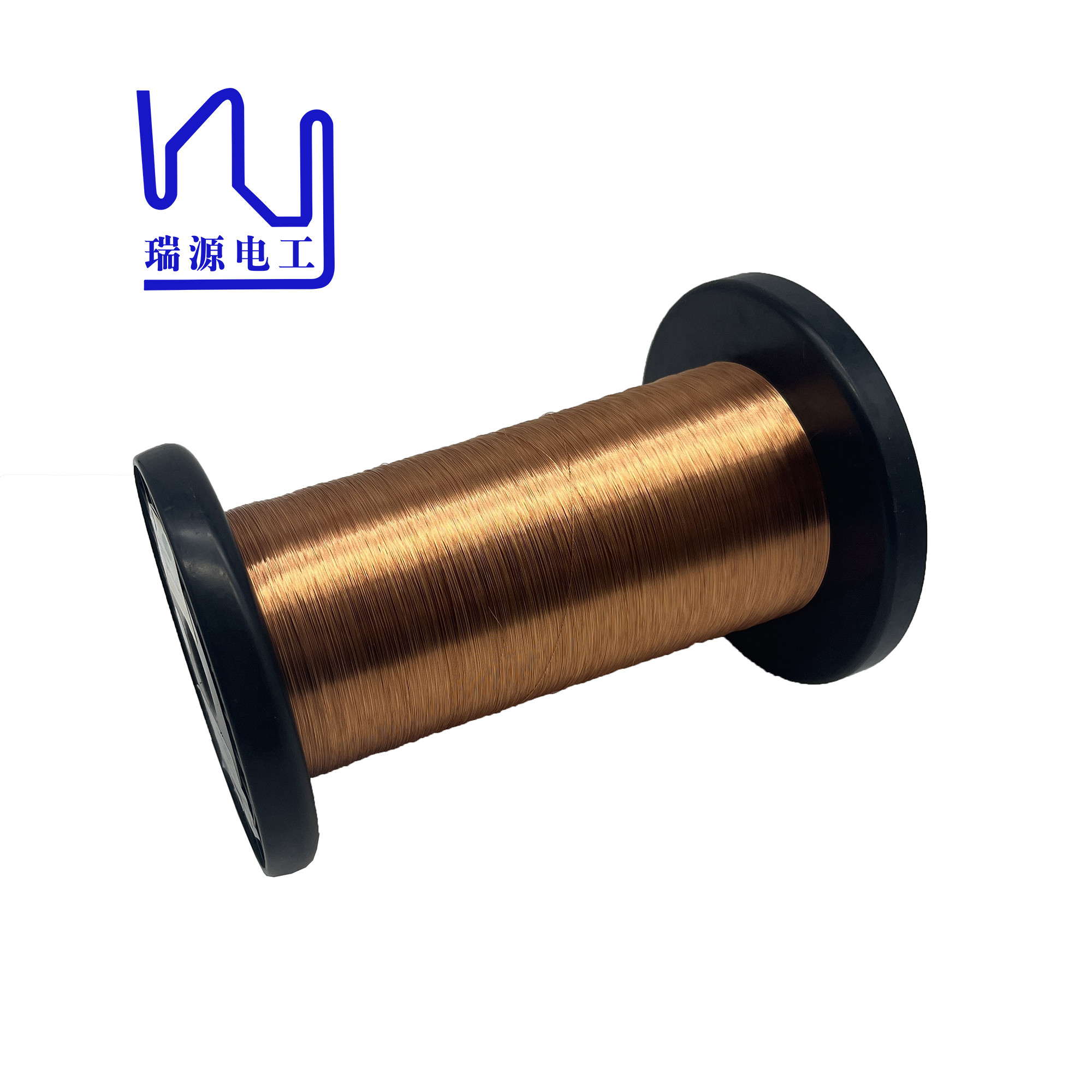

High Voltage Fully Insulated Wire FIW4 0.14mm Soldering FIW Enameled Copper Wire
FIW uses advanced technologies such as multiple individual insulating coatings and online high-voltage continuity testing to ensure the reliability and defect-freeness of product insulation. This strict insulation protection enables FIW to meet or even exceed industry safety standards, bringing greater market opportunities and core competitiveness to manufacturers.
|
Nom.Diameter(mm)
|
Min. Breakdown voltage (V) 20℃ |
|||||
|
FIW3 |
FIW4 |
FIW5 |
FIW6 |
FIW7 |
FIW8 |
|
|
0.100 |
2106 |
2673 |
3969 |
5265 |
6561 |
7857 |
|
0.120 |
2280 |
2964 |
4332 |
5700 |
7068 |
8436 |
|
0.140 |
2432 |
3192 |
4712 |
6232 |
7752 |
9272 |
|
0.160 |
2660 |
3496 |
5168 |
6840 |
8512 |
10184 |
|
0.180 |
2888 |
3800 |
5624 |
7448 |
9272 |
11096 |
|
0.200 |
3040 |
4028 |
5928 |
7828 |
9728 |
11628 |
|
0.250 |
3648 |
4788 |
7068 |
9348 |
11628 |
13908 |
|
0.300 |
4028 |
5320 |
7676 |
10032 |
12388 |
14744 |
|
0.400 |
4200 |
5530 |
7700 |
9870 |
12040 |
14210 |
