Product Name: | FIW4 Class 180 0.14mm Full Insulated Zero Defect Solder Able Enameled Copper Wire For High Voltage Transformer | Thermal Rating: | 180 |
---|---|---|---|
Insulation Material: | Enamel | Diameter: | 0.1mm-0.4mm |
Conductor Material: | Copper | Key Word: | FIW4 Class 180 0.14mm Full Insulated Zero Defect Solder Able Enameled Copper Wire For High Voltage Transformer |
Highlight: | FIW4 enameled copper magnet wire,0.14mm enameled copper magnet wire,fiw 0.2 mm enamelled copper wire |

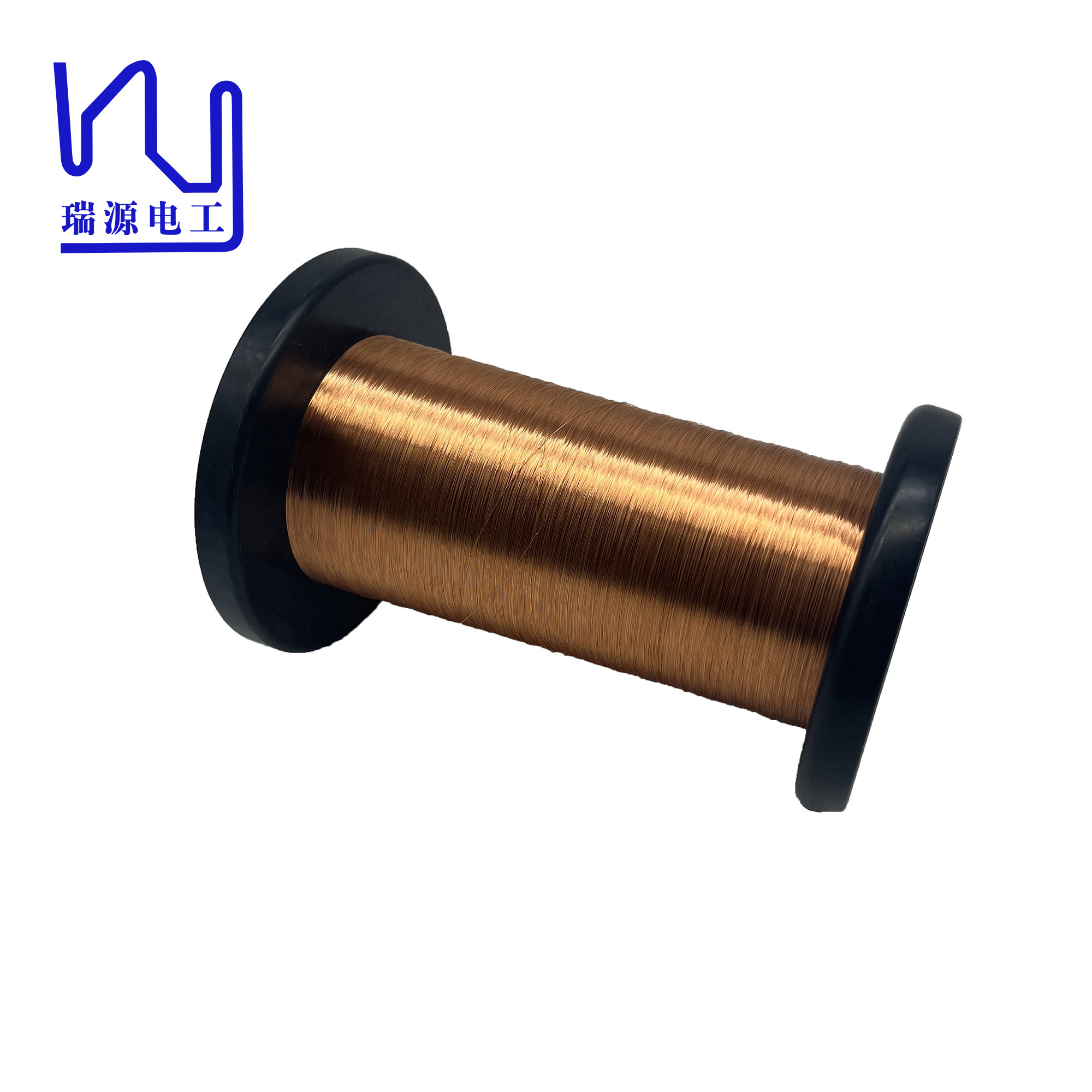

FIW4 Class 180 0.14mm Full Insulated Zero Defect Solder able Enameled Copper Wire For High Voltage Transformer
FIW wire as an innovative wire product, is attracting the attention of the manufacturing industry with its excellent performance and wide application prospects. As a wire product that can replace traditional TIW (triple insulated wire) for the production of switching transformers, FIW has become one of the first choices of manufacturers with its unique advantages and diverse applications.
Nom.Diameter(mm)
|
Min. Breakdown voltage (V) 20℃ |
|||||
FIW3 |
FIW4 |
FIW5 |
FIW6 |
FIW7 |
FIW8 |
|
0.100 |
2106 |
2673 |
3969 |
5265 |
6561 |
7857 |
0.120 |
2280 |
2964 |
4332 |
5700 |
7068 |
8436 |
0.140 |
2432 |
3192 |
4712 |
6232 |
7752 |
9272 |
0.160 |
2660 |
3496 |
5168 |
6840 |
8512 |
10184 |
0.180 |
2888 |
3800 |
5624 |
7448 |
9272 |
11096 |
0.200 |
3040 |
4028 |
5928 |
7828 |
9728 |
11628 |
0.250 |
3648 |
4788 |
7068 |
9348 |
11628 |
13908 |
0.300 |
4028 |
5320 |
7676 |
10032 |
12388 |
14744 |
0.400 |
4200 |
5530 |
7700 |
9870 |
12040 |
14210 |
