| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.038mm |
| Minimum Order Quantity: | 5 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Superthin 2UEW 155/180 Enameled Magnet Copper Wire | Thermal Rating: | 155/180 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.038mm |
| Conductor Material: | Copper | Key Word: | Superthin 2UEW 155/180 Enameled Magnet Copper Wire |
| Highlight: | superthin copper magnet wire,2uew 155 copper magnet wire,2uew 180 enameled copper wire |
||

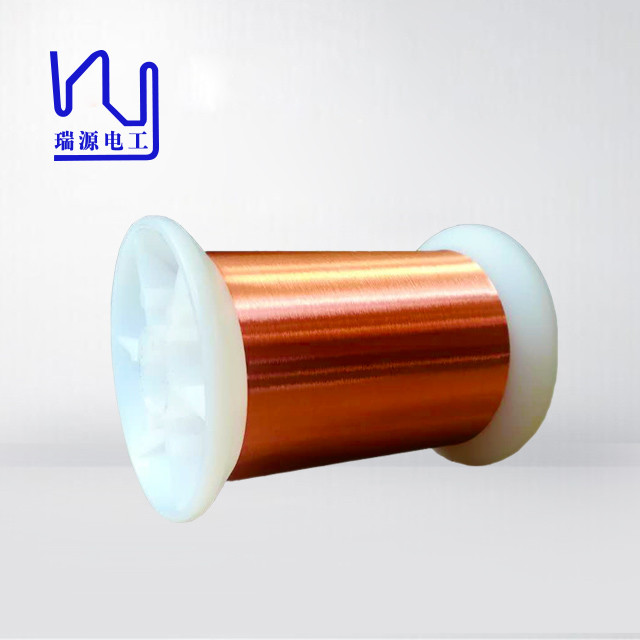

Superthin 2UEW 155/180 enameled magnet copper wire
Main features:
1.It features good solderability (self-soldering)and is solderable after completion of winding.
Even at 360-400 degrees, the wire has great and prompt soldering property.
There’ s no need to go on with mechanical stripping of enamel, contributing to increase of working efficiency.
2. Under the condition of high frequency, it’ s characterized by good "Q" value.
Below is pinhole data in IEC
| Nominal Dia. | Number of pinholes in effective length | ||
| insulation class | |||
| G1 | G2 | G3 | |
| 0.018 d 0.50 | <12 | <8 | <5 |
|
Name |
Superthin 2UEW 155/180 enameled magnet copper wire |
|
Key word |
Enameled copper wire |
|
Insulationh |
Enamel |
|
Thermal rating |
155/180 |
|
Diameter of the enameled copper wire |
0.038mm |
|
Type |
Superthin 2UEW 155/180 enameled magnet copper wire |
