| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | FIW |
| Minimum Order Quantity: | 20 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | FIW4 0.2mm High Voltage 4000V Soldering FIW Enameled Copper Fully Insulated Wire | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | Enamel | Diameter: | 0.1mm-0.4mm |
| Conductor Material: | Copper | Key Word: | FIW4 0.2mm High Voltage 4000V Soldering FIW Enameled Copper Fully Insulated Wire |
| High Light: | FIW4 enameled magnet wire,0.2mm enameled magnet wire,4000V fiw wire |
||

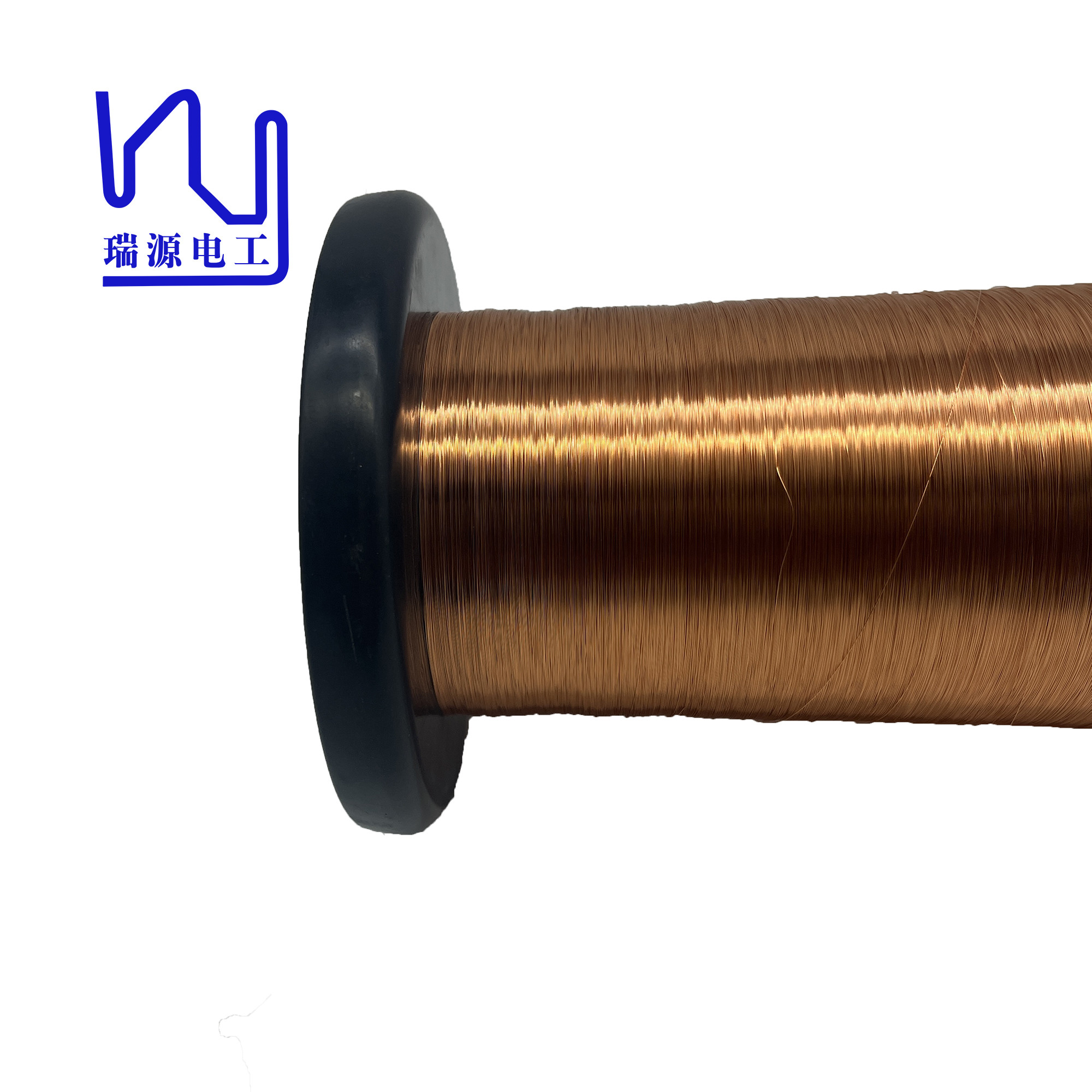

FIW4 0.2mm High Voltage 4000V Soldering FIW Enameled Copper Fully Insulated Wire
FIW also has excellent solderability, excellent windability, and a high temperature grade that can reach 180 °C. This enables FIW to not only meet the production needs of general transformers, but also be applicable to fields with higher special requirements, such as industrial automation and other fields.FIW4 0.2mm High Voltage 4000V Soldering FIW Enameled Copper Fully Insulated Wire
|
Nom.Diameter(mm)
|
Min. Breakdown voltage (V) 20℃ |
|||||
|
FIW3 |
FIW4 |
FIW5 |
FIW6 |
FIW7 |
FIW8 |
|
|
0.100 |
2106 |
2673 |
3969 |
5265 |
6561 |
7857 |
|
0.120 |
2280 |
2964 |
4332 |
5700 |
7068 |
8436 |
|
0.140 |
2432 |
3192 |
4712 |
6232 |
7752 |
9272 |
|
0.160 |
2660 |
3496 |
5168 |
6840 |
8512 |
10184 |
|
0.180 |
2888 |
3800 |
5624 |
7448 |
9272 |
11096 |
|
0.200 |
3040 |
4028 |
5928 |
7828 |
9728 |
11628 |
|
0.250 |
3648 |
4788 |
7068 |
9348 |
11628 |
13908 |
|
0.300 |
4028 |
5320 |
7676 |
10032 |
12388 |
14744 |
|
0.400 |
4200 |
5530 |
7700 |
9870 |
12040 |
14210 |
