| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.05mm |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | Green Color 44 AWG 0.050mm Magnet Wire For Modern Style Guitar Pickup | Insulation: | Poly-coated |
|---|---|---|---|
| Size: | 0.05mm | Application: | Guitar Pickups Coils |
| Quantity: | 1.5kg/roll | Key Word: | Green Color 44 AWG 0.050mm Magnet Wire For Modern Style Guitar Pickup |
| High Light: | green guitar pickup wire,44 awg guitar pickup wire,0.05 guitar pickup coil wire |
||

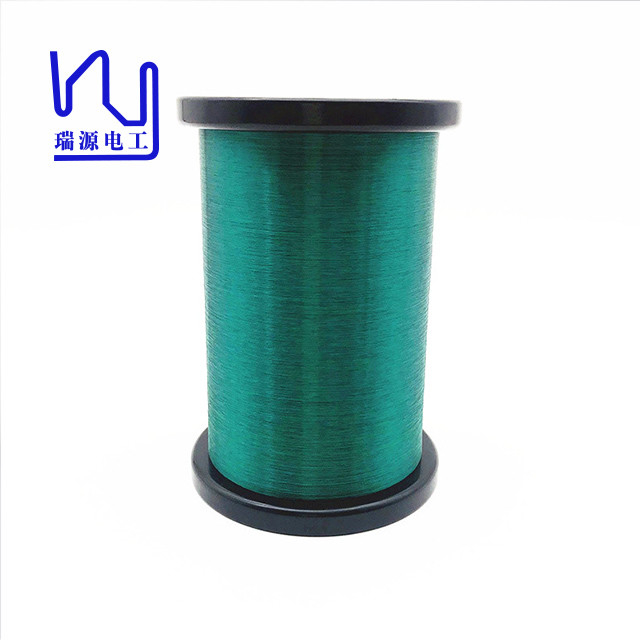

Green color 44 AWG 0.050mm magnet wire for modern style guitar pickup
If you want to build your own configuration or style for pickups, don’ t hesitate to get these wires.
They won’ t let you down but bring you great clarity and cut through. Rvyuan poly-coated magnet wire for pickups gives your pickups a stronger tone than vintage wind.
| Test Item | Standard Value | Test Result |
| Conductor Diameter | 0.050±0.002mm | 0.050mm |
| Thickness of insulation | Min. 0.007 | 0.0094mm |
| Overall diameter | Max. 0.060mm | 0.0594mm |
|
Continuity of covering (50V/30m) |
Max. 60 pcs | Max. 0 pcs |
| Breakdown voltage | Min. 400V | Min. 1,628V |
| Resistance to softening | Continue 2 times pass | 230℃/Good |
| Solder test(390℃±5℃) | Max. 2s | Max. 1.5s |
| D.C Electrical resistance(20℃) | 8.6-9.0 Ω/m | 8.80 Ω/m |
| Elongation | Min. 12% | 23% |
